LED Light Drivers
The Backbone of Every LED Installation — Constant Current, Constant Voltage, Dimmable & Waterproof Drivers Pan India
What Is an LED Driver?
An LED driver is the power supply that converts incoming AC mains voltage (220V in India) into the regulated DC output that LEDs require to operate safely and efficiently. Unlike incandescent bulbs that run directly on AC, LEDs are current-sensitive devices — without a properly matched driver, they flicker, overheat, degrade prematurely, or fail entirely.
Constant Current vs. Constant Voltage
Choosing the wrong driver type is the most common LED installation mistake. Here's exactly when to use each.
🔵 Constant Current (CC) Driver
- Maintains fixed output current (e.g., 350mA, 500mA, 700mA, 1050mA)
- Output voltage varies with load — driver self-regulates
- Used for: COB modules, LED downlights, spotlights, panels
- Protects LEDs from current surge and runaway heating
- More stable long-term — no lumen depreciation from over-drive
- Often specified as "XW @ YmA" — e.g., 20W @ 700mA
- Required for any LED module without internal current limiting
- Nucleo range: 350mA to 2100mA, 5W to 200W
🟢 Constant Voltage (CV) Driver
- Maintains fixed output voltage (12V DC or 24V DC)
- Output current varies with load — LED strip limits current internally
- Used for: LED strips, tape lights, RGB systems, signage
- Multiple loads can be connected in parallel on the same driver
- Simple to design — same voltage rail powers entire strip run
- Specified as "12V / 24V, XA" — e.g., 24V 5A = 120W driver
- Works with LED strips that have built-in resistors per chip
- Nucleo range: 12V & 24V, 15W to 500W
Nucleo Driver Range
Six driver categories covering every professional lighting application from slim recessed fixtures to large outdoor installations.
Non-Dimmable CC Driver
Cost-effective constant current driver for fixed-output downlights, streetlights, and panels. High PF (>0.95), low THD, compact DIN rail or box form factors. 5W–200W.

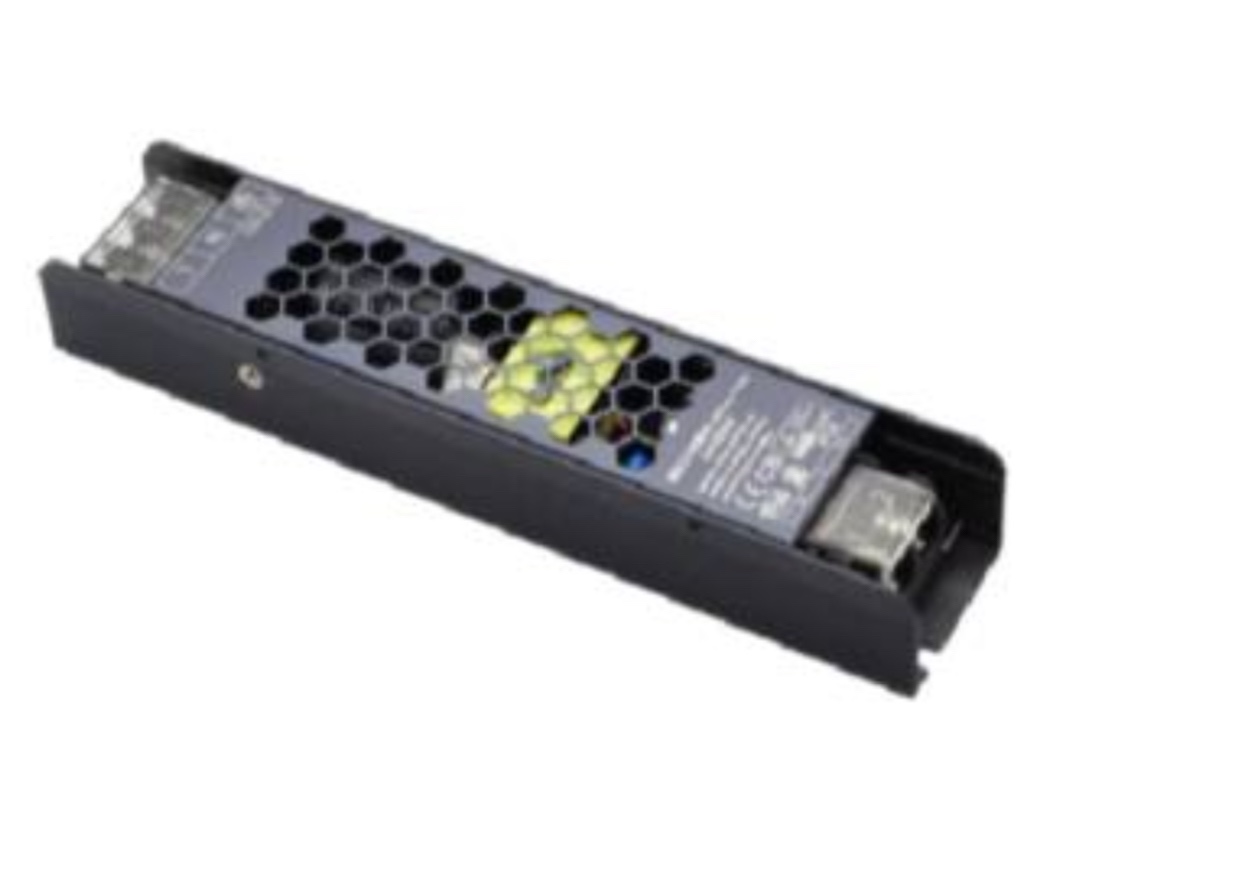

Non-Dimmable CV Driver
12V and 24V regulated power supplies for LED strip lighting, signage, and cove lights. Slim profile, aluminium housing, short-circuit and over-load protected. 15W–500W.
TRIAC Dimmable Driver
Works with standard leading/trailing edge TRIAC dimmers. Smooth 1%–100% dimming curve, flicker-free. For residential and hospitality dimming with existing dimmer switches.
DALI / 0-10V Driver
Digital DALI protocol (IEC 62386) for BMS, smart building, and grouped zone dimming control. Also available as 0-10V analogue. For offices, hotels, retail, and smart homes.
Waterproof Outdoor Driver
IP65/IP67 sealed aluminium driver for garden lighting, façade fixtures, signage, and outdoor landscape LEDs. Handles Indian monsoon conditions. Potted PCB for vibration resistance.
Custom / OEM Driver
Bespoke LED driver development for luminaire manufacturers and OEM fixture brands. Custom wattage, current, dimming protocol, form factor, and connector type on request.
Why Choose Nucleo LED Drivers?
Engineered for India's electrical environment — wide input range, surge-protected, and built to survive the monsoon.
Up to 95% Efficiency
Less energy wasted as heat — cooler operation, longer life, and lower electricity cost per lumen for large commercial and industrial installations.
India-Ready Input Range
Universal 100–277V AC input handles India's voltage fluctuations without needing a voltage stabiliser. Works Pan India across all grid conditions.
4kV Surge Protection
Built-in surge protection safeguards against lightning-induced voltage spikes and grid transients — a critical feature for Indian monsoon season installations.
105°C Capacitors
High-temperature rated electrolytic capacitors extend driver life in India's warm ambient conditions — surviving 45°C+ ambient temperatures without derating.
Zero Audible Noise
Switching frequency above 40kHz — completely silent operation. No hum, no buzz, no transformer whine in quiet residential and office environments.
50,000 Hour Rated Life
MTBF >100,000 hours at full load in 50°C ambient. Designed to match the lifespan of premium LED modules — avoiding premature driver-caused fixture failures.
Technical Features
Built-in protection and performance features that matter for real-world Indian electrical installations.
🛡️ Full Protection Suite
Short-circuit (SCP), over-voltage (OVP), over-current (OCP), over-temperature (OTP), and open-circuit protection. Auto-recovery after fault clearance.
📊 High Power Factor
PF >0.95 on all models above 25W. Low THD (<15%) reduces harmonic distortion on the supply network — compliance with BEE and energy audit requirements.
🌡️ Thermal Management
Aluminium casing acts as passive heat sink. Onboard NTC thermistor triggers OTP shutdown before critical temperature — no fan required on most models.
🔀 Parallel Connectivity
CV drivers support parallel load connection — multiple LED strips from one driver. Simplifies wiring for long strip runs and multi-zone cove lighting installations.
🔌 Universal Connectors
Input and output terminals accept 0.5–4mm² cable. Screw terminal versions available for field wiring. Push-in connectors available for factory-built luminaires.
📋 BIS / CE Certified
Certified to IEC 61347 (LED driver safety standard). CE marked for international projects. BIS registration available for relevant models. Documentation provided.
Technical Specifications
General specification range across the Nucleo LED driver product family. Model-specific data sheets available on request.
| Specification | Value |
|---|---|
| Driver Types | Constant Current (CC) / Constant Voltage (CV) |
| Wattage Range | 5W / 10W / 15W / 20W / 30W / 40W / 60W / 100W / 150W / 200W / 300W / 500W |
| Input Voltage | 100–277V AC, 50/60Hz (Universal) |
| Output Voltage (CV) | 12V DC / 24V DC / 36V DC / 48V DC |
| Output Current (CC) | 350mA / 500mA / 700mA / 1050mA / 1400mA / 2100mA |
| Efficiency | Up to 95% (at full load, 230V AC input) |
| Power Factor | >0.95 (models ≥25W) |
| Total Harmonic Distortion | <15% (THD) |
| Dimming Options | TRIAC / 0-10V / DALI (IEC 62386) / PWM / Switch-Dim |
| Dimming Range | 1%–100% (dimmable models) |
| Surge Protection | 4kV (DM) / 2kV (CM) per IEC 61000-4-5 |
| IP Rating | IP20 (indoor) / IP65 / IP67 (outdoor) |
| Operating Temperature | –20°C to +50°C ambient |
| Capacitor Rating | 105°C rated electrolytic capacitors |
| MTBF | >100,000 hours at 50°C full load |
| Warranty | 2 Year (Nucleo Standard) |
Where Nucleo Drivers Power LED Installations
From bedroom downlights to factory high-bays — Nucleo LED drivers perform reliably across every environment.
Residential Lighting
Recessed downlights, cove strips, wardrobe sensors, under-cabinet lighting in villas, apartments, and bungalows.
Retail & Showrooms
Dimmable DALI drivers for jewellery showrooms, fashion retail, and lifestyle stores requiring precise zone-by-zone control.
Hotels & Hospitality
TRIAC and DALI drivers for hotel room ambiance lighting, lobby chandeliers, restaurant atmosphere, and ballroom scene setting.
Office & Commercial
0-10V drivers for office panel lighting with occupancy sensor integration. BMS-compatible DALI drivers for large commercial floor plates.
Industrial & Warehouse
High-wattage CC drivers for high-bay LED fixtures, factory floor lighting, and cold storage environments with wide temperature range requirements.
Landscape & Garden
IP67 waterproof CV drivers for garden path lights, pond uplighters, driveway lanterns, and outdoor feature lighting installations.
Signage & Advertising
24V CV drivers for illuminated sign boxes, backlit channel letters, display lightboxes, and hoardings across India.
Architectural & Façade
High-power IP65 drivers for building façade wash, monument uplighting, and outdoor architectural LED feature lighting.
Installation Guide
Correct driver installation is critical for LED performance and lifespan. Follow these professional guidelines.
💡 Indoor Driver Installation
- Calculate total LED load in watts. Select a Nucleo driver with output wattage at least 20% above the total load (e.g., 48W LED load → 60W driver minimum). Never run a driver at 100% rated load continuously.
- Mount the driver in a ventilated junction box, ceiling void, or driver housing. Ensure the driver has at least 50mm clearance on all sides for heat dissipation — do not pack tightly against insulation or other components.
- Connect the mains input (L, N, E) to the driver's AC input terminals. Always isolate the circuit at the MCB before wiring. Use appropriate cable glands to maintain IP rating on enclosed installations.
- Connect the DC output wires to the LED module or strip. Observe polarity — red/positive (+) and black/negative (–). Incorrect polarity will not damage most modern LED drivers but will result in no output.
- For dimmable drivers: connect the dimmer control wires (0-10V signal, DALI data, or TRIAC phase) per the wiring diagram supplied. Ensure control wiring is kept away from mains wiring to avoid interference.
- Power on and verify output voltage (CV) or current (CC) with a multimeter. Commission the dimmer across the full 0–100% range. Check for flicker using a smartphone camera in slow-motion mode.
🌧️ Outdoor IP67 Driver Installation
- Select an IP67 Nucleo driver for any installation exposed to rain, irrigation spray, or monsoon conditions. IP65 is adequate for wall-mounted applications; IP67 for ground-level or partially submerged locations.
- Mount the driver in a shaded location where possible — direct sun on the driver casing raises ambient temperature and can trigger thermal protection. Use a driver enclosure or GI conduit box for ground-mounted units.
- All cable entry points must use IP-rated cable glands (IP68 for IP67 drivers). Seal glands tightly after cable insertion. Any unsealed entry point voids the IP rating entirely.
- Route mains cable in UV-resistant conduit from the interior to the driver. Use double-insulated 3-core armoured cable (SWA) for underground runs to outdoor driver locations.
- Connect DC output to outdoor LED fixtures using UV-stabilised 2-core cable. All outdoor DC junction points must be in IP65+ rated junction boxes or use waterproof push-in connectors.
- After installation, test under simulated rain (garden hose) before commissioning. Confirm driver output is stable under wet conditions and all cable glands are watertight. Label the driver's circuit at the DB for future maintenance.
⚡ The Driver Defines the Fixture's Destiny
In the LED lighting industry, the driver is the component that separates a 2-year fixture from a 10-year fixture. The LED chip itself is remarkably durable — the weak link has always been the power electronics that feed it. A driver with undersized capacitors, poor surge immunity, or inadequate thermal design will fail within 10,000–20,000 hours, taking a premium fixture investment with it.
Nucleo sources LED drivers from manufacturers who apply the same rigorous component selection and testing standards as automotive and industrial electronics. Every driver in our range is tested for output accuracy, temperature rise, protection circuit response, and dimming linearity before dispatch. The result is a driver that genuinely matches the rated lifespan of the LED it powers — and a system that delivers on its promised return on investment.
Whether you need a single 10W driver for a retrofit downlight or 500 units of a custom-specification DALI driver for a hospitality project, Nucleo delivers with full technical documentation and Pan India project support.
Frequently Asked Questions
Expert answers on LED driver selection, installation, and compatibility for India's lighting professionals and end users.
What is the difference between a constant current and constant voltage LED driver?
How do I choose the right wattage for an LED driver?
What dimming types are available?
Can LED drivers be used outdoors in India?
What is the lifespan of a Nucleo LED driver?
What protection features are built in?
What input voltage do Nucleo drivers support?
Where can I buy LED drivers Pan India?
