The Same Point of Light,
Built to Survive the Route.

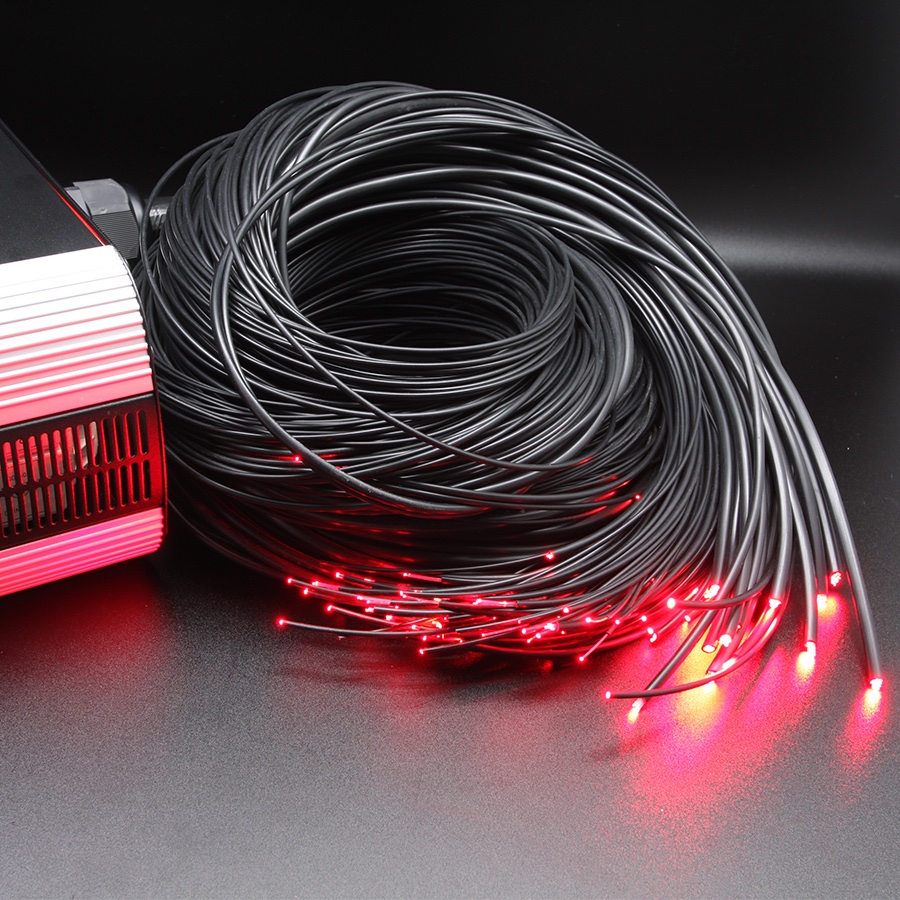

A black PVC jacket wraps the same PMMA end-glow core used indoors, so the fiber can be pulled through conduit, embedded in screed, or routed outdoors and into wet zones without damage — while still glowing at a single clean point.
Bare PMMA fiber performs well indoors, but any route that involves conduit pulls, plaster embedding, foot traffic or outdoor exposure will damage an unprotected strand over time. The Nucleo NL-EOF series wraps the same optical-grade PMMA core in a black PVC jacket sized to each diameter — the strand still ends in a bright single point once stripped back at the fixture location, but the run itself is now abrasion, moisture and handling resistant.
The jacket doesn't change how the fiber glows — it changes where the cable can safely go.
Outdoor & Wet Routing
UV and moisture resistant jacket allows runs across terraces, pool decks and exterior soffits before terminating at a protected point.
Embed in Plaster or Screed
The jacket protects the core when fiber is cast into plaster ceilings, poured floors, or run through wall conduit.
Handles Repeated Pulling
Conduit pulls and tight bends during installation won't nick or fracture the core the way they would on bare fiber.
Same optical core, same illuminator compatibility — the jacket is the only difference, and it's the difference that matters for demanding routes.
Black PVC Protective Jacket
Shields the PMMA core from abrasion, UV degradation and moisture ingress along the entire cable run.
Outdoor & Wet-Zone Rated Routing
Suitable for terraces, poolside paths and exterior soffits — the illuminator itself always stays in a dry, ventilated enclosure.
Seven Core Diameters
0.5mm to 3mm core, each with a proportionally sized jacket, so point size and brightness match the bare series exactly.
Plaster & Screed Embeddable
The jacket protects the strand when cast into wet plaster or floor screed, with only the stripped tip exposed at the surface.
Conduit-Pull Friendly
Withstands the friction and bending of being pulled through electrical conduit during first-fix, unlike unprotected fiber.
Identical Point-Glow Output
Once the jacket is stripped at the termination point, light output matches the bare PMMA series at the same diameter and illuminator setting.
Same Illuminator Compatibility
Pairs with the same Nucleo NLE light engine range as the bare series — no special driver required.
Stocked & Dispatched from Mumbai
Standard roll lengths ship within 24–48 hours; project volumes are coordinated against your installation schedule.
| Model | Core / Jacket Dia. | Length / Roll | Material | PVC Sheath | Colour |
|---|---|---|---|---|---|
| NL-EOF-0.5 | 0.5mm / 1.3mm | 6000m | PMMA | Yes | Black |
| NL-EOF-0.75 | 0.75mm / 1.5mm | 5400m | PMMA | Yes | Black |
| NL-EOF-1.0 | 1mm / 1.8mm | 3000m | PMMA | Yes | Black |
| NL-EOF-1.5 | 1.5mm / 3mm | 1400m | PMMA | Yes | Black |
| NL-EOF-2.0 | 2mm / 3.5mm | 250–350m | PMMA | Yes | Black |
| NL-EOF-2.5 | 2.5mm / 4mm | 250m | PMMA | Yes | Black |
| NL-EOF-3.0 | 3mm / 4.5mm | 150m | PMMA | Yes | Black |
Anywhere the fiber run itself is exposed to the elements, foot traffic or building material — not just the finished light point.
Swimming Pool Points
Fiber routed to underwater or poolside points while the illuminator stays dry outside the pool structure.
Outdoor Landscape & Terrace Lighting
UV and moisture resistant jacket supports exterior runs across pergolas, terraces and garden paths.
Steps & Walkable Surfaces
Handles the abrasion of foot traffic and cleaning where bare fiber would wear through quickly.
Plaster-Embedded Ceilings
Cast directly into wet plaster or screed ceilings, with only the tip exposed once the surface is finished.
Facade & Soffit Accents
Routed through building facades and soffits where the cable is exposed to weather along its length.
Long Conduit Runs
Commercial installations where fiber is pulled through extended electrical conduit alongside other services.
Marine & Wet-Deck Fitouts
Boats, spas and wet-deck areas where cabling must tolerate constant moisture exposure.
Temporary Outdoor Installations
Events and exhibition structures where the cable is repeatedly handled, coiled and redeployed.
Enquire About Jacketed Fiber Optic Cable
Our team helps you match core diameter and route conditions to the correct fiber and illuminator combination.
