Cabinet & Wardrobe LED Power Supply

The Nucleo cabinet LED power supply is purpose-built for wardrobe and furniture lighting installations. At only 18mm tall — thinner than a standard pencil — it conceals completely behind wardrobe panels, inside cabinet plinths, or within the top box of a walk-in wardrobe system. Its standout feature is the 12 individual output ports, allowing a single driver to power up to 12 separate LED light points — one per shelf, drawer section or hanging rail — without any additional wiring hubs or splitters. Available in 60W, 100W and 150W to match wardrobes of any size.

12
Output Ports
Power 12 LED points from one driver
18
mm Slim
Hides inside any cabinet or wardrobe
12–24V
DC Output
Compatible with 12V & 24V LED fixtures
SELV
Safety Rated
Safe for furniture & occupied spaces

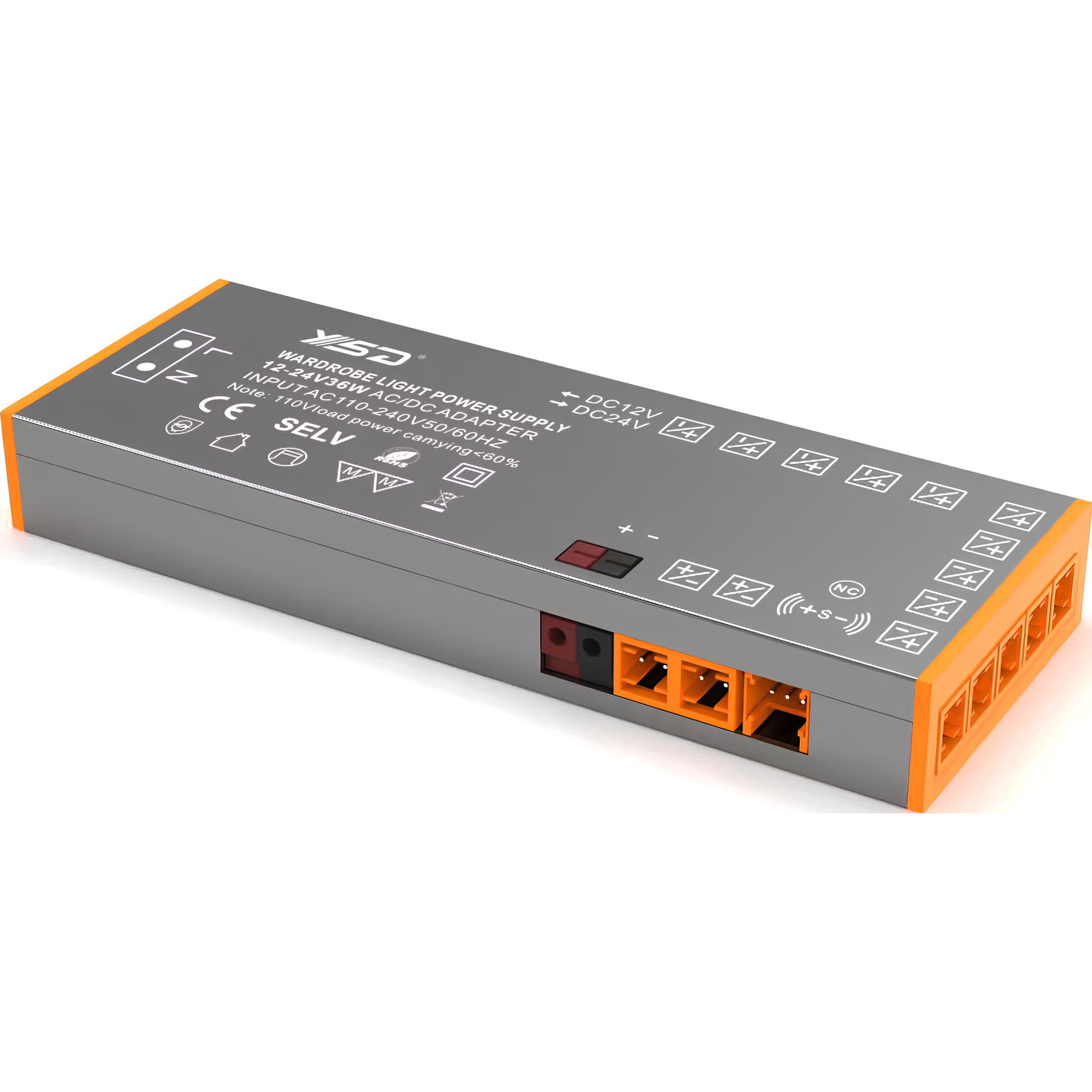

12 Independent Output Ports

Each of the 12 terminals provides an independent output connection for one LED light — a shelf strip, a hanging rail light, a drawer sensor light or a wardrobe spotlight. No splitter cables, no additional hubs. One driver, cleanly wired to all 12 positions in a single run from the concealed mounting point.

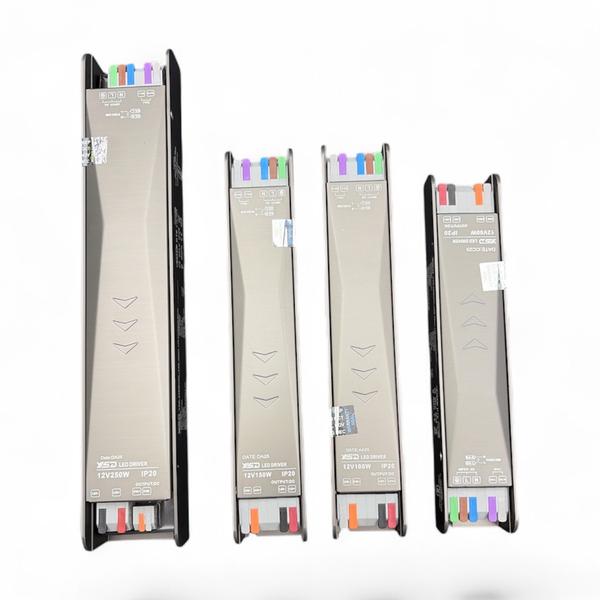

Available Models

All models share the same 18mm ultra-slim height and 12-port output. Choose wattage based on the total LED load:

60W
For small wardrobes
Voltage12–24V DC
InputAC 100–264V
Output12 Ports
Size (L×W×H)166×50×18mm
100W
For medium wardrobes
Voltage12–24V DC
InputAC 100–264V
Output12 Ports
Size (L×W×H)196×50×18mm
150W
For large walk-in wardrobes
Voltage12–24V DC
InputAC 100–264V
Output12 Ports
Size (L×W×H)226×50×18mm

🛡️ SELV — Safety Extra Low Voltage

This driver is SELV rated — the output voltage (12–24V DC) is classified as Safety Extra Low Voltage, meaning contact with output terminals does not pose an electric shock risk under normal operating conditions. This is essential for furniture and wardrobe lighting where wiring may be accessible to users. SELV compliance also covers Class III luminaire requirements under Indian and international electrical safety standards.

Key Features

🔌
12 Output Ports
Power up to 12 independent LED light points from a single driver. No splitter cables needed — each port connects directly to one fixture.
📏
Only 18mm Slim
Thinner than most wardrobe panels. Mounts flush inside any cabinet top box, plinth or false back panel — completely invisible after installation.
⚡
12–24V Universal
Compatible with 12V and 24V LED strips, wardrobe lights and cabinet fixtures. One driver covers both voltage standards.
🌐
Universal Input
AC 100–130V and 170–264V auto-range input. Works on India's 230V supply and international 110V — no manual voltage selection.
🛡️
SELV Safety Rated
Safety Extra Low Voltage output — safe for occupied furniture spaces and Class III luminaire applications. No shock risk on output terminals.
🔒
Full Protection
Overload, short circuit and over-voltage protection with automatic recovery — keeps lights safe if a connection is accidentally disturbed.

Applications

👗
Walk-in Wardrobes
🗄️
Sliding Door Wardrobes
🍳
Kitchen Cabinets
📚
Display Shelving
🛏️
Bedroom Furniture
🏪
Retail Display Cases
🏨
Hotel Room Wardrobes
💄
Vanity & Dressing Area
🍷
Bar & Display Cabinets
🧰
Modular Furniture

Technical Specifications

ParameterSpecification
Product typeWardrobe / Cabinet LED Power Supply
Output voltage12–24V DC (AC/DC Adapter)
Output ports12 independent ports
Wattage options60W / 100W / 150W
Input voltageAC 100–130V / 170–264V (universal range)
Safety ratingSELV (Safety Extra Low Voltage)
Body height18mm (ultra-slim)
Dimensions — 60W166 × 50 × 18 mm
Dimensions — 100W196 × 50 × 18 mm
Dimensions — 150W226 × 50 × 18 mm
ProtectionsOverload, short circuit, over-voltage
InstallationIndoor, concealed inside furniture
Application classClass III (SELV)
SupplyPan India

Frequently Asked Questions

What is a 12-port cabinet LED power supply?
A 12-port cabinet LED power supply has 12 individual output connection terminals, allowing one driver to power up to 12 separate LED light points — individual shelves, rails, drawers — all from a single centrally mounted unit. No extra splitter cables or distribution hubs are needed.
How do I choose between 60W, 100W and 150W?
Add up the total wattage of all LED lights that will connect to the driver, then choose the next size up with at least 20% headroom. For example: 8 shelf strips at 6W each = 48W total — choose the 60W model. 12 lights at 8W each = 96W — choose the 100W. Always size with headroom to avoid running the driver at full rated load continuously.
Why is only 18mm height important?
Standard drivers are 30–50mm thick and won't fit inside wardrobe cavities or cabinet plinths. At 18mm, this driver mounts flush inside any wardrobe top box, behind a kick panel, or within a false back — completely invisible after the furniture is assembled. No external junction box required.
What does SELV mean for wardrobe lighting?
SELV (Safety Extra Low Voltage) means the 12–24V DC output does not pose an electric shock risk under normal conditions — important when LED wiring inside a wardrobe may be accessible to users. SELV-rated drivers comply with Class III luminaire safety requirements.
Does this driver work with India's 230V mains supply?
Yes. The driver has a universal wide-range input covering AC 100–130V and 170–264V, which automatically covers India's 230V mains without any manual voltage selection.
Which LED wardrobe lights work with this driver?
Any 12V or 24V LED wardrobe light, LED strip, LED cabinet bar, or sensor-activated LED fitting. Nucleo's own LED wardrobe light and LED cabinet light range is fully compatible. Confirm the voltage and total wattage of your chosen fixtures before ordering the driver wattage.
Does Nucleo supply these drivers pan-India?
Yes. Nucleo supplies cabinet and wardrobe LED power supplies across India from Mumbai — to Delhi, Bangalore, Hyderabad, Chennai, Pune, Ahmedabad, Kolkata and beyond. Contact us for project quantities, bulk pricing and specification support.
