The Extrusion Is the Constant. The Light Is Yours.
Most neon flex is sold as a finished, pre-fitted product — the colour temperature, brightness, and density already locked in before it reaches site. Nucleo's silicone neon flex channels take the opposite approach: each profile ships as an empty extrusion, a precisely shaped silicone body designed to diffuse whatever LED strip is fitted inside it into one seamless, dot-free line of light.
That separation matters on real projects. A designer specifying warm white for a hospitality corridor and a fabricator specifying tunable white for a retail ceiling can use the exact same channel geometry, sourcing a different strip for each. Nucleo supplies seven cross-sections — from a 12×12mm channel for tight ceiling grooves to a 50×25mm high-visibility channel for exterior facades, plus a side-bending variant for horizontal curves and a 360° round channel for column wraps.
Why an Empty Channel
Strip-Agnostic Design
Fit the exact CCT, RGB, or high-CRI strip the project calls for — the channel doesn't dictate the light source.
Dot-Free Diffusion
The silicone body scatters point-source LEDs into one continuous glow, whichever strip is fitted inside.
UV & Weather Stable
The silicone material resists sun exposure and moisture, holding its finish on exterior runs over time.
Two Bending Families
Top Bending profiles flex through vertical curves; the Side Bending profile handles tight horizontal corners.
360° Option Available
The 22R round channel diffuses in a complete circle for column wraps and all-angle signage.
Consistent Joinery
Every profile shares the same construction language, so transitions between sizes stay visually coherent.

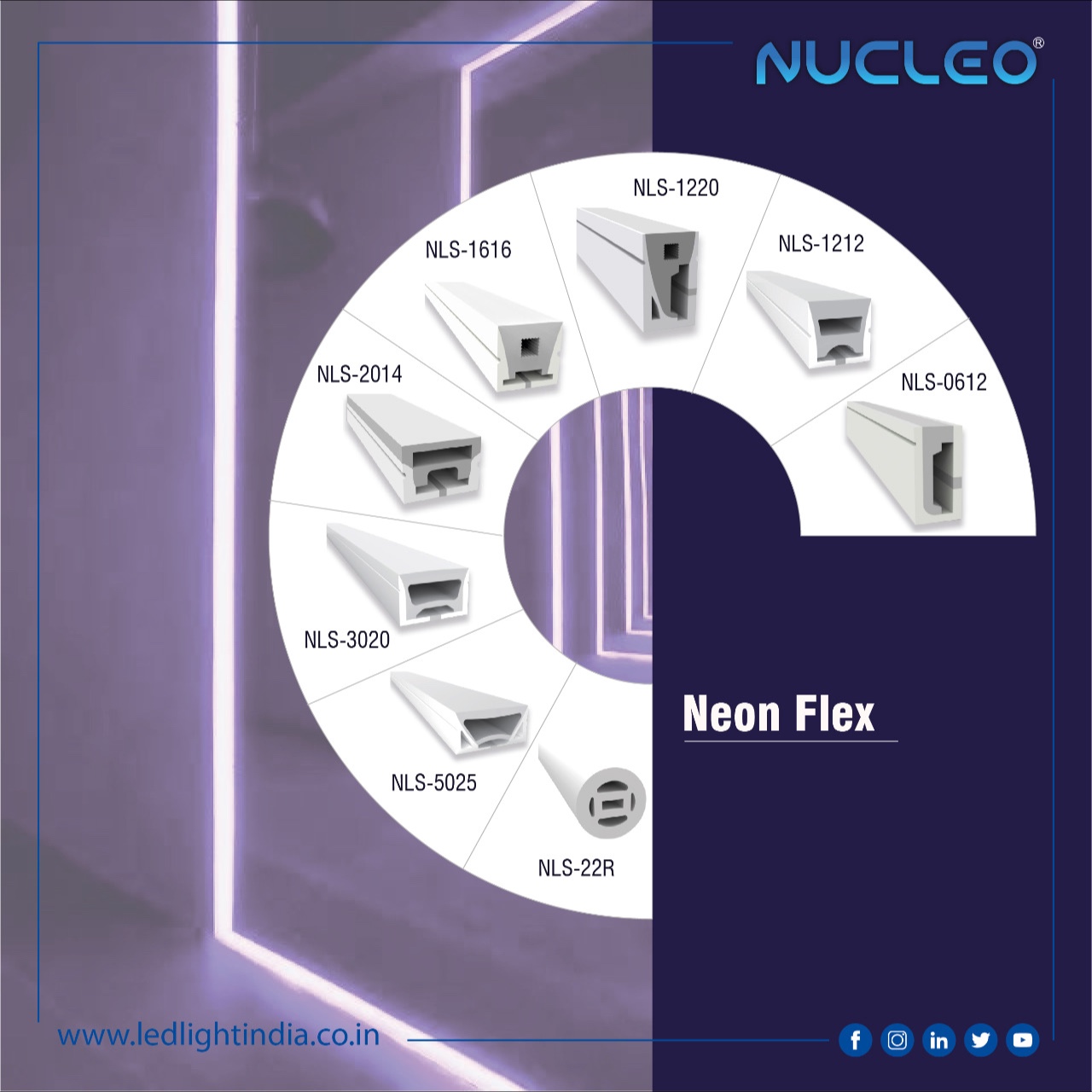

Channel Range
12 × 12 mm
Top BendingThe narrowest channel in the range — fits ceiling grooves, shadow-gap reveals, and furniture channels too tight for the larger profiles. Produces a fine, precise line suited to close-range accents.
- Shadow gap coves
- Ceiling reveals
- Furniture edges
- Stair nosing
16 × 16 mm
Top BendingThe channel most projects default to — wide enough for a broad choice of strip, narrow enough to sit in a standard groove. A dependable middle ground for residential and commercial coves alike.
- Interior cove lighting
- Staircase lighting
- Wall reveals
- Column wrap
20 × 14 mm
Top BendingA wider, shallower channel — presents a broader diffused face while keeping the mounting depth low. Useful where the groove available is shallow but a more generous light band is still wanted.
- Wide ceiling coves
- Shallow reveals
- Retail shelf edges
- Outdoor accents
30 × 20 mm
Top BendingRoom for a wider or higher-density strip, which reads as a noticeably brighter, thicker line than the 16×16mm channel. Chosen for hotel corridors, larger commercial coves, and exterior base-of-wall washes.
- Hotel cove lighting
- Commercial interiors
- Exterior wall base
- Large staircase
50 × 25 mm
Top Bending · Large FormatThe largest channel in the range — built for a strip with real output behind it, on installations where the diffused line needs to carry across a room or a building elevation. The channel itself becomes a visible design element.
- Building facades
- Large cove channels
- Exterior signage
- Architectural feature
12 × 20 mm Side Bending
Side BendingBuilt to flex easily along its wide axis, so tight horizontal curves and plan-view corners are far simpler to execute than with a Top Bending channel. The 20mm height also presents a taller, more prominent diffused face.
- Tight corner curves
- Circular plan layouts
- Curved reception desks
- Arched openings
22R Round 360°
360° EmissionThe only circular cross-section in the range — the diffused light reads evenly from a full 360° around the channel. Used wherever the profile itself needs to be seen from any angle: column wraps, pendant features, letter outlines, standalone decorative runs.
- Column wraps
- Signage letters
- Pendant features
- Decorative hanging
Channel and Strip Are Sourced Separately
Every profile above is supplied as an empty extrusion — the LED strip is not fitted at the factory. This is deliberate: it means the same channel geometry can carry a warm-white strip on one project and a tunable-white or RGB strip on the next, without changing the physical profile at all. Share the channel size and Nucleo will confirm a compatible strip width before you order.
Size Comparison
| Channel | Width | Height | Bending Type | Emission | Best Scale |
|---|---|---|---|---|---|
| 12 × 12 mm | 12 mm | 12 mm | Top Bending | Front face | Fine / close-range |
| 16 × 16 mm | 16 mm | 16 mm | Top Bending | Front face | Versatile / residential |
| 20 × 14 mm | 20 mm | 14 mm | Top Bending | Front face (wide) | Shallow reveal / wide band |
| 30 × 20 mm | 30 mm | 20 mm | Top Bending | Front face | Commercial / hotel |
| 50 × 25 mm | 50 mm | 25 mm | Top Bending | Front face (large) | Facade / large-scale |
| 12 × 20 mm Side Bend | 12 mm | 20 mm | Side Bending | Front face (tall) | Tight horizontal curves |
| 22R Round 360° | Ø 22 mm | Ø 22 mm | All-axis flex | 360° all-round | Columns / signage / pendant |
22R Round — the Odd One Out, on Purpose
Every rectangular channel in the range diffuses primarily from one face. The 22R channel is circular, so wrapping it around a column means every viewing angle sees the same even glow — no side reads brighter or darker than another. That's what makes it the default choice for signage letters and hanging decorative runs, where the profile is the object, not a hidden light source.
Where Each Channel Gets Used
Ceiling Cove
16×16 or 20×14 in a plastered channel — a seamless perimeter line
Staircase Edges
12×12 or 16×16 along tread or riser lines for a continuous accent
Column Wrap
22R Round for full 360° glow, or 16×16 for a partial wrap
Facade Outline
30×20 or 50×25 along a building parapet or exterior perimeter
Furniture Edges
12×12 for slim cabinet grooves and joinery channel recesses
Signage Letters
22R Round for a full-outline letter glow readable from any angle
Curved Layouts
12×20 Side Bending for tight-radius horizontal curves and arches
Landscape & Garden
Weather-stable silicone body suited to garden walls and outdoor paths
Frequently Asked Questions
Find the Right Channel for Your Project
Tell us your groove size, application, and the strip you're planning to fit — Nucleo will confirm the correct channel and connector set. Samples available pan-India.
