PVC Sheathed End Glow
Fiber Optic Cable
Single-Strand PMMA · Treated Black PVC Jacket · Swimming Pool · Sauna · Deck · Feature Flooring
Zero Heat at Tip · Zero Electrical Risk · Pan India Supply

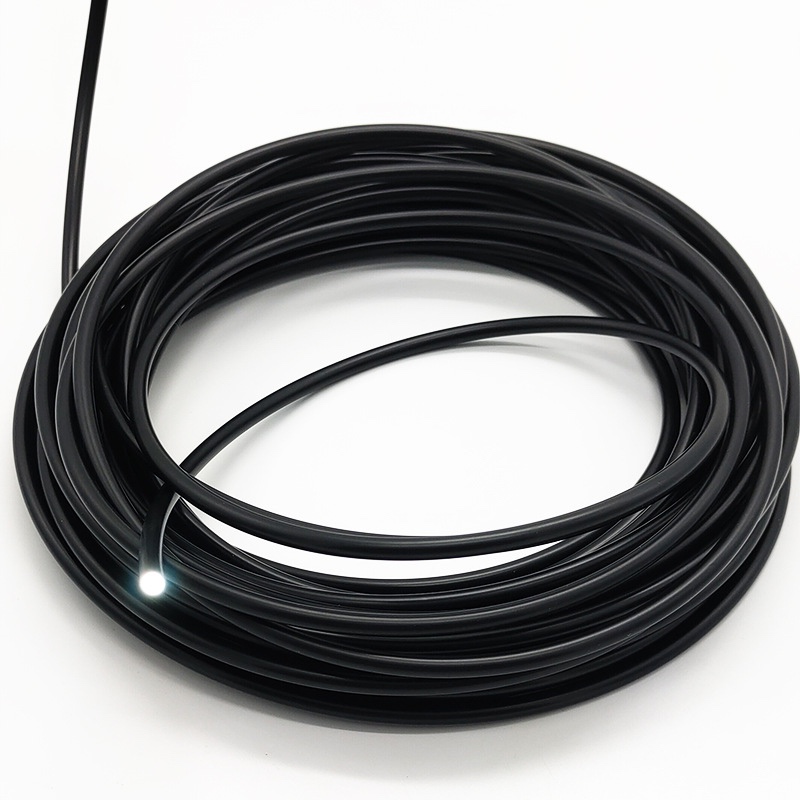

What Is PVC Sheathed End Glow Fiber Optic Cable?
PVC sheathed end glow fiber optic cable is a single-strand Polymethyl Methacrylate (PMMA) plastic optical fiber enclosed in a treated black PVC outer jacket. The fiber transmits light from a remote LED illuminator to the far end — and emits that light exclusively from the fiber tip as a bright, sharp point. No electricity travels through the cable itself. No heat is generated at the emission point.
The fiber tip becomes the light source. Everything else stays hidden and safe. The LED illuminator sits in a protected equipment location — a ceiling void, plant room, or cabinet. The cable runs through walls, floors, and submerged surfaces with zero electrical hazard. At the end of every fiber, a single brilliant point of light glows — creating star constellations in swimming pool floors, sauna ceilings, deck surfaces, and feature flooring. Nucleo PVC sheathed end glow fiber is available in seven standard SKUs from 0.5mm to 3.0mm core diameter — Pan India.
How End Glow Fiber Optic Cable Works
A beautifully simple optical system — one remote light engine, dozens or hundreds of glowing star points across any surface.
Remote LED light engine (10W–100W) converts mains supply into high-intensity focused light. Mounted safely in ceiling void, cabinet, or pool plant room — completely out of sight and out of the wet zone. Only the optical fiber cable runs from this point.
Multiple PMMA fiber cables bundle at one end and connect to the illuminator output port. All fibers receive light simultaneously. The PVC sheath is peeled back 30–40mm at the bundle end so naked fibers enter the illuminator port cleanly.
Light travels down the PMMA core by total internal reflection — no light escapes along the cable length. The treated black PVC jacket blocks ambient light from entering the fiber and protects the PMMA core from moisture, mechanical damage, and UV. The cable can run through walls, floors, tile screed, and submerged surfaces.
Light exits exclusively at the far fiber tip — one sharp, brilliant point. Intensity depends on core diameter (larger = brighter), cable length (longer = slightly dimmer), and illuminator power. Multiple tips across a pool floor or ceiling create the constellation or starfield effect.
A rotating wheel inside the illuminator randomly blocks individual fibers — creating natural twinkling where different stars brighten and dim asynchronously. An RGB colour wheel cycles the entire bundle through colours simultaneously. Both effects operate from the illuminator only — the cable requires no modification.
End Glow vs. Side Emitting — Choosing the Right Fiber
Two different fiber optic product types create two completely different visual effects. Choose based on your application.
★ End Glow Fiber (This Product)
- Bright pinpoint of light at fiber tip only
- Dark cable between tips — sharp star simulation
- Creates starfield, constellation, or meteor shower effect
- PVC sheath — routable through walls, floors, pools
- Higher tip brightness visible from greater distance
- Strands individually placed — precise star positioning
- Twinkling via rotating wheel in the illuminator
- Best for: Swimming pools, sauna ceilings, deck stars, flooring constellations
✦ Side Emitting Fiber (Mesh / Fabric)
- Soft glow distributed along entire fiber length
- Entire surface area lights up — no dark zones
- Creates luminous fabric, panel, or curtain effect
- Woven into mesh or fabric — area coverage only
- Lower intensity — ambient background glow
- Colour-shifting via RGB wheel — whole panel changes
- Fabric-based — surface mount and frame applications
- Best for: Spa walls, lounge ceilings, event backdrops
Nucleo PVC End Glow Fiber Cable — Product Range
Seven standard SKUs from 0.5mm to 3.0mm core diameter. Choose by required brightness, installation distance, and number of star points needed — smaller core for dense star fields on shorter runs, larger core for fewer but brighter points over longer distances.
Technical Specifications
| Model Code | Core I.D. | Outer Dia. | Spool Length | Attenuation | Min. Bend |
|---|---|---|---|---|---|
| NUC-PEOF-0.5 | 0.5mm | 1.3mm | 6,000m | ≤ 0.3 dB/M | 10mm |
| NUC-PEOF-0.75 | 0.75mm | 1.6mm | 5,400m | ≤ 0.3 dB/M | 15mm |
| NUC-PEOF-1.0 ⭐ | 1.0mm | 2.2mm | 3,000m | ≤ 0.3 dB/M | 25mm |
| NUC-PEOF-1.5 ⭐ | 1.5mm | 2.5mm | 1,400m | ≤ 0.3 dB/M | 40mm |
| NUC-PEOF-2.0 | 2.0mm | 3.0mm | 1,050m | ≤ 0.3 dB/M | 80mm |
| NUC-PEOF-2.5 | 2.5mm | 3.5mm | 750m | ≤ 0.3 dB/M | 100mm |
| NUC-PEOF-3.0 | 3.0mm | 4.0mm | 450m | ≤ 0.3 dB/M | 100mm |
| General Specifications — All SKUs | |
|---|---|
| Core Material | Single-Strand PMMA (Polymethyl Methacrylate) Plastic Optical Fiber |
| Outer Jacket | Treated Black PVC Sheath — UV Stabilised, Moisture Resistant |
| Acceptance Angle | 50° |
| Numeric Aperture | 0.60 |
| Operating Temperature | −55°C to +70°C (low humidity) |
| Light Emission Type | End Glow Only — No Side Emission Along Cable Length |
| Electrical Hazard | Zero — No Voltage in Cable. Light Engine Only |
| Heat at Emission Point | Zero — No UV, No IR, No Heat at Fiber Tip |
| Packing | Foam Spool, Neutral Export Carton |
| Warranty | 1 Year — Nucleo Standard |
Why Choose Nucleo End Glow Fiber Cable?
No electricity or heat at the fiber tip — only pure optical light. Submerge it in pool water, install it in sauna humidity, embed it in outdoor flooring. Zero electrical hazard to occupants or installers at any point of contact with the cable.
UV-stabilised PVC jacket protects the PMMA core from moisture ingress, mechanical damage, abrasion during installation, and long-term UV exposure outdoors. Also blocks ambient light from entering the fiber — maintaining optical efficiency.
Light exits only from the fiber tip — a single, precise, intense point against a dark background. Against a dark pool floor or night-sky ceiling, the visual effect is indistinguishable from natural stars. No visible cable between points.
−55°C to +70°C — performing reliably through sauna operating temperatures, Mumbai summers, and cold-storage environments without degradation of optical performance or PVC jacket integrity.
0.5mm to 3.0mm core diameters. Specify by number of stars and cable run length — smaller core for dense star fields on shorter runs, larger core for fewer but brighter stars over longer distances and more powerful illuminators.
Low consistent attenuation across all seven SKUs ensures the signal stays strong across realistic installation run lengths — reducing the need for more powerful illuminators to compensate for fiber transmission losses.
Where Nucleo End Glow Fiber Optic Cable Creates Wonder
The definitive application. Fiber tips embedded in pool floor tile grout create a submerged starfield visible from above. Zero electrical hazard in water — light engine in the plant room, only fiber running to the pool. Works in infinity pools, lap pools, hotel pools, and private residences Pan India.
−55°C to +70°C operating range makes this fully rated for sauna ceiling and wall installations. Star points create a calming night-sky ambiance. No heat or UV at the tip — safe for wooden surfaces and direct skin exposure to light from the fiber points.
Fiber tips embedded in decking boards, between pavers, and along garden pathway edges create a softly glowing outdoor star effect at ground level. Treated PVC jacket withstands outdoor humidity, temperature cycling, and foot traffic over the deck surface.
Fiber tips embedded in polished concrete, marble, resin flooring, and large-format tiles create a constellation floor that glows at night. Used in hotel lobbies, luxury residences, nightclubs, wedding venues, and high-end retail floors across India.
Dense 0.5mm fiber star ceiling above seating creates the ultimate immersive cinema experience — a real overhead galaxy dimming with the room lights. Light engine hidden in the ceiling void; only the stars are visible above you.
Star ceilings above king-size beds, pool floors in hotel spas, constellation features in hotel bar ceilings and restaurant floors. A single fiber optic installation creates a signature feature that defines the space for the lifetime of the hotel — specified by interior designers and architects across India's premium hospitality sector.
Installation Guide
End glow fiber optic cable installations follow a consistent method across all applications — pool floors, sauna ceilings, deck surfaces, and feature floors.
Plan the star pattern and calculate fiber count. Mark every star point position on the surface. Each position requires one fiber strand. Count total fibers — this determines bundle count and illuminator power. As a guide: 1.0mm fibers, 20W illuminator handles approximately 100–150 fiber ends per bundle.
Mount the LED illuminator in a protected location. The illuminator must be accessible for maintenance and positioned within the fiber bundle cable length of the surface. For pool installations, the plant room is standard. For sauna and ceiling installations, the ceiling void above is used. The illuminator requires 220–240V AC and adequate ventilation.
Route fiber cables from illuminator to each star point. The PVC sheath allows pulling through conduit, floor screed, tile adhesive, and wall cavities. For pool floors, fibers are routed through 6–10mm holes drilled through the pool shell before tile installation — one hole per star point or per fiber bundle group.
Bundle and terminate fibers at the illuminator end. Group all fibers from one illuminator. Peel back the PVC sheath 30–40mm on each strand. Align bare fiber ends flush, bind tightly with shrink tubing, and polish the bundle face flat. The polished face inserts into the illuminator input port.
Trim and finish fiber tips at the surface. At each star point, cut the fiber flush with the surface using a sharp fiber cutter — not scissors or side cutters, which crush rather than cut cleanly. A clean perpendicular cut produces the sharpest, brightest star point. For pool and wet area applications, seal the tile hole with pool-grade epoxy grout.
Power on and commission. Connect illuminator to mains. All fiber tips activate immediately. Check for dark fibers (broken or improperly bundled strands) and inspect tip brightness uniformity. Set twinkle wheel speed and colour wheel to desired effect. For pool installations, run 24 hours before water is introduced.
Handling & Care: PMMA optical fiber is sensitive to sharp impact and aggressive bending. Do not crush, pull aggressively, squeeze, press, drag, or step on the cable during storage or installation. The minimum bend radius must be observed for each SKU — bending tighter creates internal microfractures that permanently reduce light transmission. Handle as you would a flexible glass rod.
Frequently Asked Questions
Specify Nucleo End Glow Fiber Optic Cable
Available Pan India — project quantities, custom spool lengths, and technical support. Contact Nucleo for pricing, samples, and installation guidance for your swimming pool, sauna, deck, or flooring project.
