NovaTilt Movable Surface COB
Tilt 0°→90°. Spin 360°. Surface-Mounted COB Spotlight That Aims at Anything — in Gold, White, or Black.
What Is the NovaTilt Movable Surface COB?

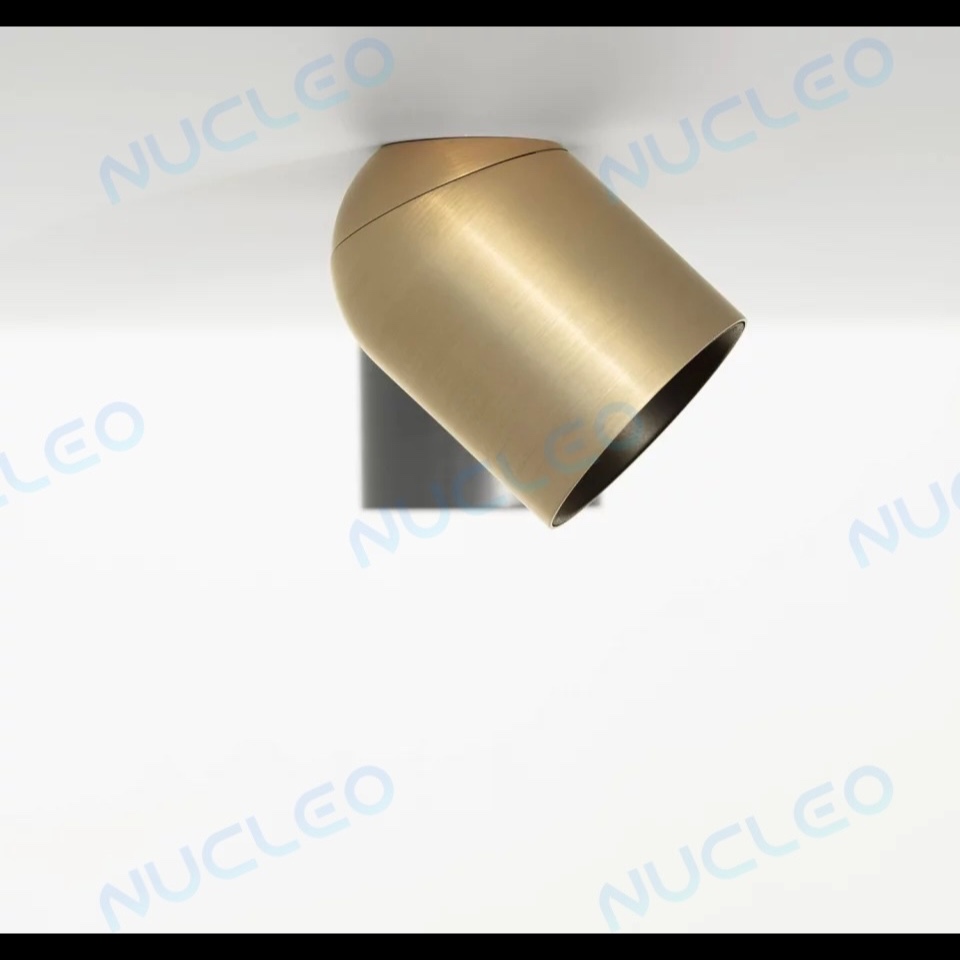

The NovaTilt is Nucleo's flagship surface-mounted COB spotlight — a cylindrical luminaire that sits on the ceiling surface and tilts its entire body from straight down (0°) all the way to fully horizontal (90°), while rotating a complete 360° around the mount point. The result is a bold, premium-looking fixture that can illuminate any target in the entire hemisphere below the ceiling.
Key Specifications
Everything you need to know at a glance — direct from the Nucleo catalogue.
Three Finishes
Each finish is a completely different design statement — choose the one that makes your ceiling speak.
Gold / Brass
Brushed gold anodised body — the NovaTilt's most distinctive finish. Pairs with warm interiors, wooden surfaces, marble, and luxury hospitality. The fixture itself becomes jewellery on the ceiling.
White
Powder-coated white body — understated and versatile. Blends into white ceilings while still showing a refined cylindrical form. For contemporary residential and hotel spaces.
Black
Anodised black — maximum contrast on light ceilings, invisible on dark ones. The professional's choice for retail, gallery, and commercial installations where the focus belongs entirely on what's lit.
Three Movement Positions
The NovaTilt covers every lighting position from directly below the fixture to any wall, surface, or object in the room.
Straight Down
Default position — vertical COB beam directly below the fixture. For table accent lighting, display pedestals, and floor features directly below the ceiling mount point.
Full Horizontal
COB beam aimed at full horizontal — parallel to the ceiling. For wall washing, artwork accent, architectural grazing, and backdrop illumination from a ceiling position.
Full Rotation
Complete 360° rotation around the ceiling mount point — aim at any compass direction from a single fixture. Combined with 90° tilt, the entire room hemisphere is reachable.
DALI & Smart Control Options
Two professional control ecosystems — DALI for commercial BMS integration, Smart App for wireless residential and hospitality control.
🏢 DALI Control
- IEC 62386 compliant DALI driver
- Individual or group addressing
- Full scene programming from DALI controller
- BMS integration — offices, hotels, retail
- Daylight-linked dimming via DALI sensors
- Flicker-free 1%–100% dimming range
- Compatible with Helvar, Lutron, ABB, Schneider DALI systems
- Ideal for large commercial NovaTilt installations
📱 Smart App Control
- Android and iOS app compatible
- Wireless dimming — no DALI infrastructure needed
- Scene programming from smartphone
- Group control of multiple NovaTilt fixtures
- Alexa and Google Home voice control compatible
- Schedule-based on/off and dimming automation
- Ideal for residential, villas, boutique hotels
- Easy retrofit into existing installations
Surface Mount vs. Recessed Spotlight
Why the NovaTilt's surface-mount design is the right choice for many applications.
🟡 NovaTilt Surface Mount
- No ceiling cutout — mounts directly on surface
- Works on concrete slab, no void depth needed
- 90° full tilt range — accents horizontal walls easily
- The cylindrical body is a visible design element
- 3 premium finish options — Gold, White, Black
- Faster installation — no hole cutting, no spring clips
- Easier repositioning — unscrew from surface, remount
- No fire-rating or IC-rating constraints
⬜ Recessed Gimbal Spotlight
- Requires 68–90mm ceiling cutout
- Needs minimum 80mm ceiling void depth
- Typically 30° max tilt range only
- Flush with ceiling — hardware invisible
- White or black trim rings only
- Hole saw + spring-clip mounting process
- Repositioning requires new ceiling cutout
- Fire-rated versions required in some ceilings
Why Specify NovaTilt?
0°–90° Full Tilt
Tilts all the way from vertical to horizontal — far wider range than any recessed gimbal. Accent walls, artwork, and features that would be unreachable from a fixed or 30° tilt fixture.
Gold Finish — Iconic
The brushed gold/brass finish elevates the NovaTilt from a lighting fixture to a ceiling accessory. Works with marble, timber, brass hardware, and luxury material palettes throughout.
COB · 3000K · CRI >95
Warm 3000K COB module with CRI >95 Ra — renders gold, timber, fabric, and food colours in their most flattering, accurate light. The quality you expect from a premium accent spotlight.
No Cutout Required
Surface mount — fix to any ceiling surface with four screws. No hole saw, no ceiling void, no minimum depth. Works on concrete slabs, timber joists, and any surface ceiling material.
DALI + Smart App
Professional DALI for commercial projects and Smart App for residential — two control ecosystems, one fixture family. No compromise between project scale and control quality.
Compact: Ø85 × H112mm
Small footprint — 85mm diameter, 112mm height. Proportionally refined on any ceiling height. Large enough to be a design statement, small enough not to overwhelm the space.
Technical Features
🌡️ 3000K Warm White
Standard 3000K CCT — the ideal colour temperature for hospitality, retail accent, and luxury residential. Custom CCT (2700K / 4000K) available on project order.
💡 COB Single Module
Single COB chip produces a clean, round, shadow-free light pool with no visible multi-chip array. Hard-edged spot with natural gradient falloff — the professional accent beam.
⚡ 220V–240V Direct
Mains-voltage input — connects directly to 220-240V AC supply. No separate low-voltage driver housing or transformer box required on the ceiling surface.
🔒 Anti-Glare Baffle
Deep matte black anti-glare baffle inside the cylinder throat — the COB source is hidden from normal viewing angles. Only the light pool is visible, not the chip.
🌀 Friction-Hold Tilt
The tilt mechanism uses a friction-lock ring — hold the set position without bolts or tools. Re-aim by applying slight pressure to the cylinder body at any time after installation.
🔧 4-Screw Surface Fix
Mounts to ceiling surface with four concealed fixing screws through the base plate. Compatible with plasterboard, timber, concrete, and metal deck ceilings.
Technical Specifications
Full specifications as per Nucleo catalogue — Catalogue Ref: 008.
| Specification | Value |
|---|---|
| Product Name | NovaTilt Movable Surface COB |
| Catalogue Reference | 008 |
| Type | Surface-Mounted Movable COB Spotlight |
| System Power | 15W |
| Lumen Output | 1500 lm |
| Luminous Efficacy | 100 lm/W |
| CCT | 3000K (Customisable) |
| CRI | >95 Ra |
| LED Technology | COB (Chip on Board) |
| Tilt Range | 0°–90° (vertical to horizontal) |
| Rotation | 360° (full circular) |
| Input Voltage | 220V–240V AC |
| Control | DALI (IEC 62386) / Smart App (Android & iOS) |
| Dimming | DALI DT6 / Smart Wireless — flicker-free 1%–100% |
| Dimension | Ø85mm × H112mm |
| Mounting | Surface Mount — 4-screw base plate |
| Finishes Available | Gold/Brass Anodised / White Powder Coat / Black Anodised |
| IP Rating | IP20 |
| Lifespan | 50,000 hours at L70 |
| Warranty | 2 Year (Nucleo Standard) |
Where NovaTilt Commands the Room
Luxury Hotels
Gold NovaTilt on suite bedroom ceilings — accent the bedhead, the art wall, or the minibar. Re-aim between property refurbishment cycles without ceiling works.
Jewellery Showrooms
Gold or black NovaTilt angled at 45° to illuminate display cases — 3000K COB makes gold jewellery glow and diamonds fire brilliantly.
Fine Dining
NovaTilt tilted to table — 3000K warm COB accent makes food presentation spectacular and creates intimate table ambiance in upscale restaurants.
Art Galleries
Black NovaTilt aimed at 60–70° for wall-mounted artwork. Full 90° tilt ensures even tall works can be lit from the ceiling angle without dark zones at the bottom.
Flagship Retail
Black or gold NovaTilt on retail feature walls and mannequin positions — re-aim instantly as the merchandise floor changes, without any ceiling intervention.
Luxury Residences
Gold NovaTilt in living rooms, dining rooms, and master bedrooms — adds a layer of design detail to the ceiling itself, not just the surfaces it illuminates.
Spa & Wellness
White NovaTilt aimed to treatment table — soft 3000K COB from a surface fixture is far more comfortable for guests lying face-up than harsh recessed downlights overhead.
Executive Offices
Smart app-controlled NovaTilt for boardrooms and executive suites — dim the accent for presentations, brighten for meetings, all from a phone.
Installation Guide
🔩 Surface Mounting
- Mark the NovaTilt mount position on the ceiling. For accent lighting a specific target, position the fixture horizontally 30–50% of the ceiling height away from the target wall — this gives the 90° tilt range the geometry to reach the target cleanly without the beam cutting across the ceiling surface.
- Feed the mains supply cable through the ceiling at the marked position — use a 20mm grommet hole or surface conduit from the nearest ceiling rose or junction box. The NovaTilt base plate conceals the cable entry point.
- Mark the four base-plate fixing hole positions through the NovaTilt base onto the ceiling surface. Pre-drill at the marked positions with a 4mm bit and insert appropriate wall plugs for your ceiling material (Rawlbolts for concrete, standard plugs for plasterboard into stud).
- Connect the mains cable to the NovaTilt driver input inside the base cavity using the push-in connectors supplied. For DALI models, additionally connect the 2-core DALI signal cable from the DALI controller. Observe L (Live), N (Neutral), E (Earth) polarity.
- Align the base plate over the fixing holes and secure with the four countersunk screws provided. Tighten firmly — the base plate must be flush against the ceiling surface with no gaps that would cause movement during tilt adjustment.
- Power on and verify the COB module illuminates. Tilt the cylindrical body to the desired accent angle by gently gripping the body and rotating it on the friction-lock ring. The mechanism holds position without tools. Rotate the entire fixture at the base to the target compass direction.
📱 DALI / Smart Commissioning
- For DALI commissioning: with the NovaTilt connected to the DALI bus, open your DALI commissioning software (DALI-2 compliant). The NovaTilt driver will be detected as a Type 6 (DT6) device. Assign the DALI short address (0–63) as required for your zone layout.
- Test individual addressing: send a direct arc level command to the assigned address. The NovaTilt should dim smoothly from 254 (100%) to 0 (off) without flicker. If multiple fixtures share an address incorrectly, re-address using the commissioning tool's identification function.
- Programme scene levels for each NovaTilt in your system: Scene 1 (accent full: 100%), Scene 2 (ambient: 40%), Scene 3 (AV/presentation: 10%), Scene 4 (off). Store scenes to the DALI controller.
- For Smart App commissioning: download the compatible Nucleo/OEM smart home app. Put the NovaTilt in pairing mode (hold the dimmer button for 5 seconds until the light pulses). Select "Add Device" in the app and follow the pairing instructions for your WiFi or Zigbee configuration.
- Create groups in the Smart App for rooms or zones. Assign each NovaTilt to its group. Set scenes: "Dining" (warm dim), "Working" (bright), "Movie" (off or 5%). Enable Alexa or Google Home skill if voice control is required.
- Test the full installation under normal room conditions. Check tilt positions are holding — if a fixture has drifted from its set angle, tighten the friction ring slightly by accessing the ring through the front of the cylinder. Commission complete.
✦ The Fixture That Earns Its Place on the Ceiling
Most ceiling lights try to disappear. The NovaTilt does the opposite — it makes its presence felt before it even switches on. The cylindrical gold body on a white ceiling is a detail in itself. When it tilts toward a painting, toward a table, toward a wall, the movement carries intention. This is a fixture that has been aimed. By someone who cared where the light landed.
The 3000K COB is warm enough to make gold look richer, timber look deeper, and food look extraordinary. The 90° tilt range is wide enough to reach any surface in any room from any ceiling position. And the 360° rotation means no target is ever out of reach. Whether it is finished in gold for a luxury hotel suite, white for a Scandinavian apartment, or black for a high-end retail flagship — the NovaTilt delivers the same quality of light and the same character of presence.
Frequently Asked Questions
What is the NovaTilt Movable Surface COB?
How is it different from a recessed gimbal spotlight?
What finishes are available?
What control options does NovaTilt support?
What is the CCT of NovaTilt?
Where can I buy NovaTilt Pan India?
