One Fixture.
Three Colour Temperatures.
Zero Controllers.

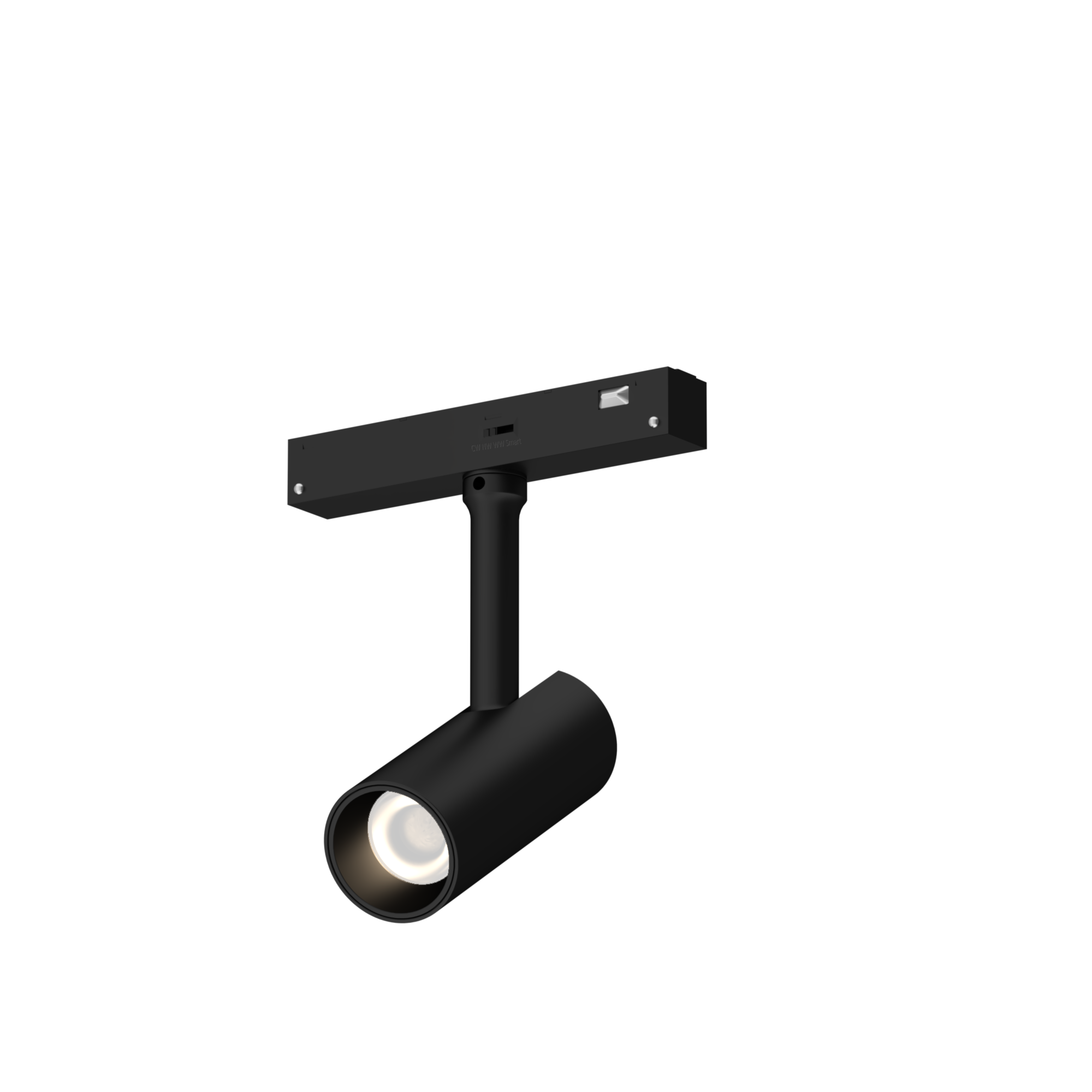

The NLMT20 magnetic track spotlight has a built-in dip switch that sets the CCT at the fixture — no separate controller, no app, no additional wiring. Switch between 3000K, 4000K, and 6500K whenever the space demands it.
Specifying a colour temperature at the design stage is not always possible — client preferences shift, spaces serve multiple functions, and commissioning feedback can come late. The Nucleo NLMT20 addresses this directly: a precision dip switch built into the fixture body lets you lock in 3000K, 4000K or 6500K independently on each spotlight, without routing signal cables or installing dimmer modules. The CCT can also be changed post-installation in seconds, giving builders, designers and facility teams genuine long-term flexibility without replacing hardware.
Each NLMT20 spotlight ships with three available colour temperatures accessible via its onboard dip switch. No signal wiring. No controller box. No dependency on a working smart system. The selection is made at the fixture and held until you decide to change it.
3000K — Warm White
Rich amber-toned light that creates warmth and visual comfort. Preferred in bedrooms, dining, hospitality lobbies and retail environments where products benefit from a warm glow.
4000K — Neutral White
A clean, balanced tone that reads as natural daylight indoors. Well-suited to showrooms, art galleries, offices, and commercial spaces where colour accuracy matters.
6500K — Cool Daylight
High-energy cool white that maximises perceived brightness and alertness. Used in workspaces, supermarkets, clinics, warehouses and any task environment requiring high visual clarity.
Every aspect of the NLMT20 is designed for the demands of professional specification — from the die-cast aluminium body to the tool-free magnetic mount.
Onboard Dip Switch CCT Control
The 3-position dip switch is integrated into the fixture body. No separate controller is required. Each spotlight can be set to a different CCT independently, giving zone-by-zone control without any additional infrastructure.
Tool-Free Magnetic Mount
Snaps onto compatible 5mm or 22mm recessed magnetic tracks in under five seconds. Fixtures can be repositioned, added, or removed without tools or an electrician — critical for retail and exhibition layouts that change regularly.
CRI >90 — Accurate Colour Rendering
High colour rendering index ensures that merchandise, artwork, and interiors are represented accurately. At CRI >90, material textures, fabric colours, and food presentation all appear as they should under natural light.
Three Wattage Options
Available in 7W for accent applications, 12W for standard ceiling heights and general illumination, and 24W for high-ceiling commercial spaces or long-throw accent requirements. Mix wattages on the same track where needed.
Black · White · Trimless Finishes
Matt black for industrial and luxury minimalist contexts. White for traditional or neutral schemes. Trimless (TR) variants flush-mount with zero visible housing — the ceiling remains unbroken, a standard requirement for premium architectural interiors.
Die-Cast Aluminium Body
Aluminium construction dissipates heat efficiently from the LED junction, extending component life. Combined with a 25,000+ hour rated LED, the NLMT20 substantially reduces long-term lamp replacement costs in commercial installations.
Dimmer Compatible Models
Select NLMT20 variants support Triac or DALI dimming when connected to a compatible controller on the magnetic track bus. Specify your dimming requirement at enquiry to receive the correct model recommendation.
Stocked in India — Fast Dispatch
Supplied from Mumbai with dispatch within 24–48 hours for standard quantities. Project volumes can be coordinated with our supply team for phased delivery aligned to your installation schedule.
| Parameter | Specification |
|---|---|
| Series | NLMT20 (M07 / M12 / 024) |
| Wattage Options | 7W · 12W · 24W |
| CCT (Colour Temperature) | 3000K / 4000K / 6500K — selectable via onboard dip switch |
| Colour Rendering Index | >90 Ra |
| Beam Angle | 24° (standard) · 36° (wide option) |
| Input Voltage | 220–240V AC, 50Hz |
| Track Compatibility | 5mm ultra-slim recessed magnetic track / 22mm recessed magnetic track |
| Finish Options | Matt Black (B) · White (F) · Trimless (TR) |
| Body Material | Die-cast aluminium |
| IP Rating | IP20 — indoor use |
| Rated Lifespan | >25,000 hours |
| Dimming | Triac / DALI compatible (model specific) |
| Certification | CE Compliant |
| Warranty | 1 Year |
Available in six standard configurations across wattage, finish and mounting style. All carry the same 3-in-1 dip switch CCT functionality.
Standard surface-mount in white. Suits homes, hospitality rooms, and retail environments where a clean, receding fixture appearance is preferred.
Matt black surface-mount. Popular in modern residential interiors, art galleries and upscale F&B where the fixture itself forms part of the visual language.
High-output white for commercial ceiling heights, large showroom floors, and spaces where long-throw accent illumination is required from the same track system.
Maximum output, matt black. Specified for hotel atriums, large luxury retail, and double-height residential spaces with dramatic accent lighting requirements.
Flush-mount trimless with no visible housing. At 7W, suited to accent and artwork lighting in luxury residential and boutique hospitality where the ceiling must remain visually clean.
The specification choice for premium fitouts — 12W trimless delivers meaningful lumen output with a completely hidden fixture profile. Preferred by architects requiring an immersive, hardware-free ceiling aesthetic.
The combination of flexible CCT, tool-free magnetic repositioning, and clean architectural finishes makes the NLMT20 suitable across a broad range of project types.
Luxury Residential
Villas, penthouses and premium apartments where the trimless TR variants deliver an invisible ceiling and CCT flexibility accommodates different rooms and moods.
Fashion & Apparel Retail
Wardrobes, display rails and feature walls benefit from the warm rendering of 3000K, while fitting rooms and mirrors often call for 4000K neutral light — both available from the same fixture.
Jewellery Showrooms
High CRI >90 at 3000K renders gold and gemstones with depth and brilliance. The magnetic track system allows display configurations to be adjusted without rewiring when layouts change seasonally.
Art Galleries & Museums
Picture lighting for artworks demands high CRI and adjustable beam angle. The NLMT20's magnetic repositioning means exhibits can be relit within minutes when collections rotate.
Restaurants & Hospitality
3000K creates the warm ambiance that makes dining spaces feel premium. The same track can carry cooler-set fixtures over prep or service areas for functional task lighting without a separate circuit.
Hotels & Serviced Apartments
Standard rooms and suites benefit from warm CCT, while lobbies and corridors suit neutral white. Using 3-in-1 fixtures throughout reduces the SKU count for procurement and maintenance teams.
Offices & Co-working
Meeting rooms, focus zones and collaboration areas each benefit from different CCTs. The dip switch lets a single track carry fixtures set individually for each function without any infrastructure change.
Clinics & Healthcare
Waiting areas can be set to warmer tones for comfort, while treatment and consultation rooms benefit from 4000K to 6500K for clinical clarity — all on a single, consistent fixture type throughout the facility.
Enquire About NLMT20 Magnetic Track Lights
Our team supports architects, interior designers and contractors with product selection, track compatibility checks, lumen calculations and project pricing.
