Suspend Light
Like Fabric.
105 × 0.75mm PMMA side glow fibers woven into a flexible, luminous panel. Drape it as a canopy. Suspend it as a sculpture. Mount it as a glowing wall. Every strand glows along its full length — the entire mesh becomes the light source.
Fiber optic mesh is fundamentally different from any other form of architectural lighting. It is not a fixture, not a strip, not a panel with point sources inside it. It is a fabric — woven from PMMA optical fiber strands — where the material itself is the light source. When connected to an illuminator, every fiber in the weave glows simultaneously along its full length. The surface becomes luminous. The form it takes is entirely determined by how you install it.
Side glow fiber is what makes the mesh work the way it does. Standard end glow fiber only emits at the cut tip — if used in a woven mesh, only the loose ends of the fibers would glow, leaving the weave body dark. Side glow fiber emits continuously along its full length, turning every strand in the mesh into a glowing line. The weave of 105 side glow strands creates a surface where every crossing point of warp and weft is illuminated — a genuinely luminous fabric rather than a panel with light behind it.
Fiber Strands Woven into a Grid
105 × 0.75mm PMMA side glow fibers are woven into a mesh — vertical warp fibers interlaced with horizontal cross threads. Each crossing point becomes a potential emission node where two glowing fibers meet.
Ends Gathered into a Single Bundle
All fiber strand ends from one edge of the mesh are gathered, aligned and terminated in a bundled ferrule — a collar that holds the fibers together for insertion into the engine's input port.
Engine Powers the Entire Surface
The ferrule bundle inserts into the illuminator port. Light distributes through every fiber simultaneously. The entire mesh surface — every vertical strand, every crossing point — glows uniformly in the selected colour.
Shape It Any Way You Need
Because the mesh carries no electricity, it can be draped, folded, suspended or formed into 3D shapes freely. Only the engine-to-bundle connection point has any wiring constraint.
| Parameter | Value |
|---|---|
| Fiber count per unit | 105 strands |
| Fiber diameter | 0.75mm |
| Fiber type | PMMA side glow (emits along full length) |
| Standard panel sizes | Contact Nucleo for current stock dimensions |
| Custom sizes | Yes — cut-to-size on request |
| Illuminator | Sold separately — all Nucleo NLE engines compatible |
| Colour capability | RGBW, single CCT, tunable white, DMX (engine-dependent) |
| Electrical current in mesh | None — only light is transmitted |
| Flexibility | Drape, fold, suspend, shape — fully flexible |
| Minimum bending radius | ~50mm |
| Surface temperature | Ambient — no heat emission at fiber surface |
| UV at fiber surface | None — IR/UV filtered at the illuminator |
The only electrical connection in a fiber optic mesh installation is at the illuminator engine. The mesh fabric carries no current and cannot cause electric shock under any circumstance — even in the event of mesh damage, wet conditions, or direct human contact. This makes fiber optic mesh the only genuinely non-electrical luminous surface available for lighting design.
This characteristic is why fiber optic mesh is used in sensory rooms, hydrotherapy pools, children's playspaces, and installations where conventional electrical lighting would be impractical or unsafe.
The mesh connects to any Nucleo NLE illuminator. Engine choice determines brightness, colour capability and any dynamic effects. Engines are sold separately.
Fully Flexible — Drape and Sculpt Freely
The mesh bends, folds and drapes like fabric. It can be suspended as a hanging canopy, formed into organic cloud sculptures, wrapped around architectural elements, or stretched across curved ceiling frames — none of which is possible with rigid LED panels or strip-based systems.
The Entire Surface Is the Light Source
There are no point sources, no hotspots, no dark zones between LEDs. Every side glow fiber in the weave emits along its full length — the surface is uniformly luminous across every square centimetre of the panel.
Non-Electrical at the Point of Contact
The mesh carries no electricity. No current flows through the fibers — only light. This eliminates electrical hazard at the surface completely, making the mesh safe to touch, install near water, and use in environments where conventional wiring cannot safely go.
Full RGBW Colour Across the Surface
PMMA fiber accurately transmits the full visible spectrum. Connect an RGBW engine and the entire mesh shifts simultaneously through 16 million colour combinations — or programme scenes via DMX for integration with a lighting control system.
Custom Sizes on Request
Standard panel sizes are available from stock. For project-specific dimensions — room-width canopies, unusual ceiling shapes, multi-panel installations — Nucleo supplies custom cut-to-size mesh to specification.
One Engine — One Connection Point
The entire mesh is driven from a single engine connection. There are no intermediate drivers, no power injection points and no wiring within the mesh body — the single ferrule bundle is the only connection required.
Hotel Lobby Canopies
Large suspended mesh canopies over hotel lobbies and atriums — forms a shifting, colour-changing ceiling installation visible from multiple floors. Custom sizes and dual-engine setups for wide spans.
Restaurant Ceilings
Draped above dining areas as a softly glowing overhead canopy. RGBW engine allows colour shifts from warm amber for dinner service to deep blue or rose for evening ambiance — controlled without ceiling access.

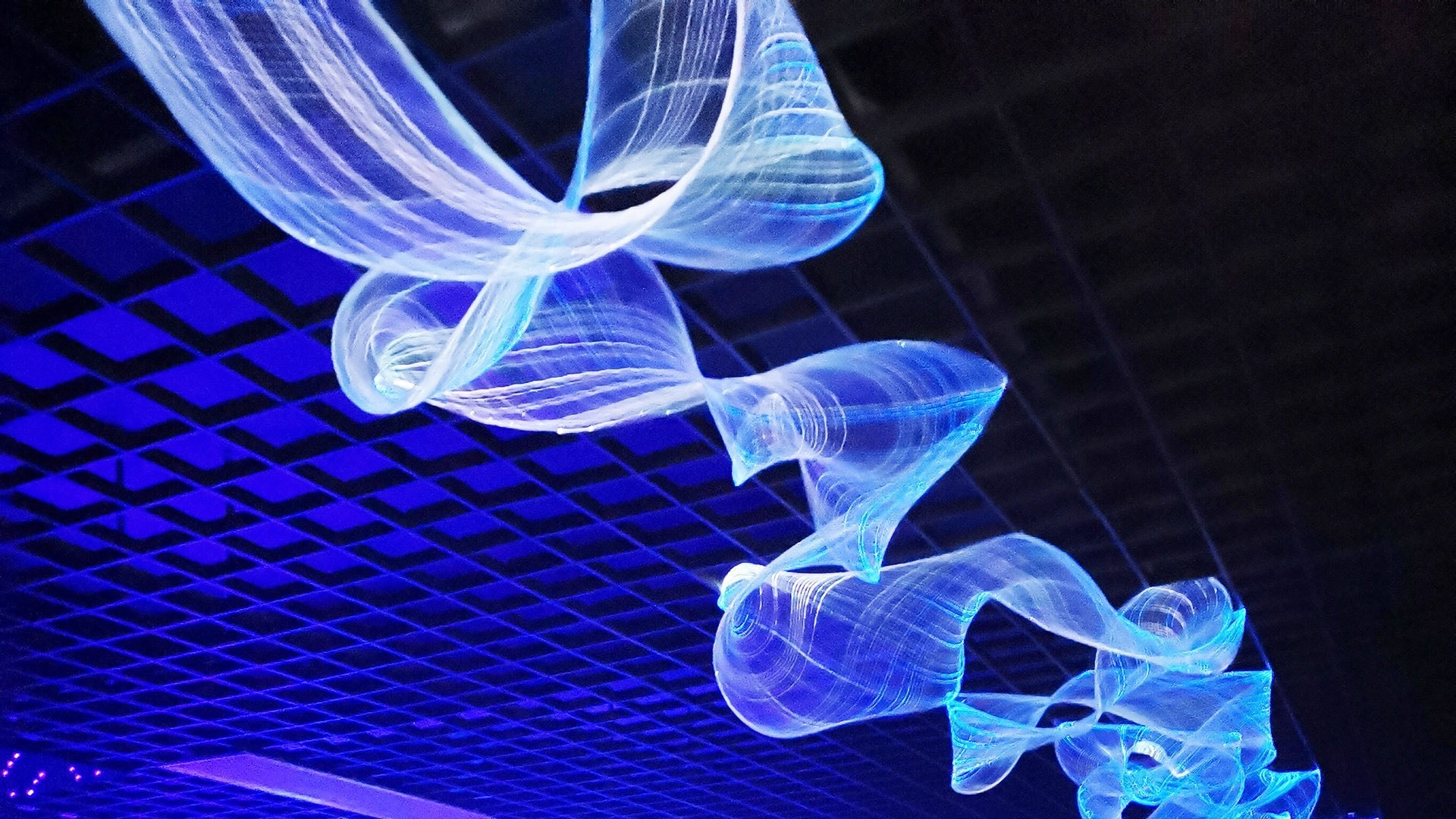

Suspended Sculptures
Formed into free-hanging 3D sculptures — clouds, waves, organic forms, abstract installations. The mesh holds any shape it's given and the fiber flexibility allows curves no rigid material can achieve.
Stage & Theatre Backdrops
Full-scene glowing backdrops for theatrical productions. NLE-5S engine adds twinkling and chaser effects for dynamic scenes. DMX engine for lighting-desk control and scene integration with the production.
Event & Exhibition Backdrops
Pop-up backdrop installations for exhibitions, brand activations, award ceremonies and product launches — installs quickly, packs down small, requires only one power point for the engine.
Sensory & Therapeutic Rooms
Fiber optic mesh panels for occupational therapy, sensory integration rooms, and autism support environments. Non-electrical surface eliminates all shock and heat hazards — safe for direct contact.
Retail Display & Window Dressing
Luminous mesh backdrops for luxury retail window displays and in-store feature areas. Changes colour with product range or season — the mesh itself is the display feature, not a light behind something else.
Luxury Residential Interiors
Statement ceiling canopies, partition screens, and headboard feature panels for luxury homes. Custom cut panels sized to the room — one engine hidden in the ceiling void drives the entire installation.
Plan the Frame or Suspension
Decide whether the mesh hangs freely, stretches across a ceiling grid, or drapes over a structural form. Mark fixing points at the top edge of the mesh.
Mount the Illuminator
Fix the NLE engine at a point accessible for power connection and within 1–3m of the mesh bundle end. Ensure ventilation around the engine body.
Connect the Bundle
Insert the pre-assembled ferrule bundle into the engine's input port. Tighten the locking collar finger-tight. No tools required — the connection is designed for quick hand assembly.
Shape and Dress the Mesh
With engine off, hang, drape or form the mesh into position. PMMA fibers should not be bent tighter than 50mm radius. Secure at fixing points with stainless fixings.
Power On and Programme
Connect the engine to power and select your colour mode. Make final adjustments to drape and position. The mesh requires no further maintenance after installation is complete.
Get a Quote for Nucleo Fiber Optic Mesh
Standard panel sizes from stock · Custom cut-to-size on request · Call or WhatsApp with your project dimensions.
