5mm Slim Recessed Magnetic Track Series
5mm Wide · Ultra Slim Profile · Flush Ceiling · Every Fixture Its Own Address — Individual DALI & Tuya BLE Mesh Control Per Light
What Is the 5mm Slim Recessed Magnetic Track?
The 5mm Slim Recessed Magnetic Track is an ultra slim track lighting system that installs flush within the ceiling — the track width is just 5mm — a hairline slot in the ceiling surface. 48V DC low-voltage power runs continuously along the track. Magnetic fixtures attach anywhere on the track face instantly, without tools, and can be slid to any position or replaced at any time without ceiling access.
Individual Fixture Control — Why It Changes Everything
Standard track systems dim all fixtures together. The 5mm recessed series gives every single fixture its own independent control — a fundamental difference in what lighting design can achieve.
⬜ Standard Track — All Together
✅ Nucleo 5mm Recessed — Every Fixture Independent
DALI Individual Control
- Each fixture has a unique DALI address (0–63 per line)
- Control from any DALI-compliant console, BMS, or controller
- Group any combination of fixtures across multiple tracks
- Programme scenes — e.g., "Display Mode": fixture 3,7,11 at 100%; others at 10%
- Daylight sensor input dims fixtures near windows automatically
- Occupancy sensor integration — zones switch off when unoccupied
- Supports DALI DT6 (dimming) and DT8 (CCT tuning)
- Compliant with IEC 62386 — LEED / GRIHA energy documentation
- Supports up to 64 individually addressed fixtures per DALI line
- Emergency lighting DALI module option per fixture
Tuya BLE Mesh Individual Control
- Each fixture has its own BLE Mesh address — appears individually in Tuya Smart app
- No WiFi hub required — BLE Mesh fixtures communicate directly
- Each fixture is a mesh node — extends range across large spaces
- Dim, scene-set, and automate any single fixture or any group
- Works offline — no internet required for local BLE control
- Alexa, Google Home, Apple HomeKit voice control via Tuya ecosystem
- Schedule automation — sunrise/sunset, time-triggered scenes
- CCT tunable fixtures controlled per fixture from app slider
- Android and iOS — single app controls all fixtures in the home
- OTA firmware updates — new features added wirelessly over time
What Individual Control Enables — Impossible with Standard Track
🎨 Scene Painting
Set every fixture to a different level — accent the painting at 100%, fill the table at 40%, leave the perimeter at 10%. A lighting scene with depth, not just an on/off level.
🏪 Flexible Retail Zoning
Change which fixtures are bright when the merchandise floor changes. No rewiring — just re-address or re-group via DALI or Tuya app, then reposition magnetically.
⚡ Energy Management
Switch off fixtures in unoccupied zones while leaving others active. DALI occupancy integration makes this automatic — only the zones with people are lit.
🌅 Circadian Programming
Schedule each fixture individually for human-centric lighting — cooler temperature and higher output in the morning, warmer and dimmer by evening. Automated, per-fixture.
Track Anatomy
Every component of the 5mm recessed magnetic track system engineered to deliver flush aesthetics and individual control.
5mm Ultra Slim Width
The 5mm track width means the recessed ceiling slot is practically a hairline — at 5mm, it is the narrowest recessed magnetic track profile available. Only the magnetic fixtures are visible; the track itself disappears into the ceiling.
48V DC Low Voltage
48V DC throughout the track — safe, efficient, and compliant with low-voltage regulations. No mains voltage exposure at the fixture connection point.
Magnetic Clip Connection
Fixtures attach to the track face magnetically — power and data (DALI or BLE) are transferred through the magnetic contacts instantly. Zero tools, zero time.
Infinite Positioning
No fixed mounting points. Fixtures slide anywhere on the track. Re-aim the layout entirely without ceiling access or rewiring — any time.
Joinable Any Length
Track sections join end-to-end with mechanical and electrical connectors. L, T, X, and flexible corner joints available for complex ceiling layouts.
5mm Ultra Slim Width
Just 5mm wide — the narrowest recessed magnetic track profile available. When recessed into the ceiling, the slot appears as a hairline. Only the light from the fixtures is seen, not the track.

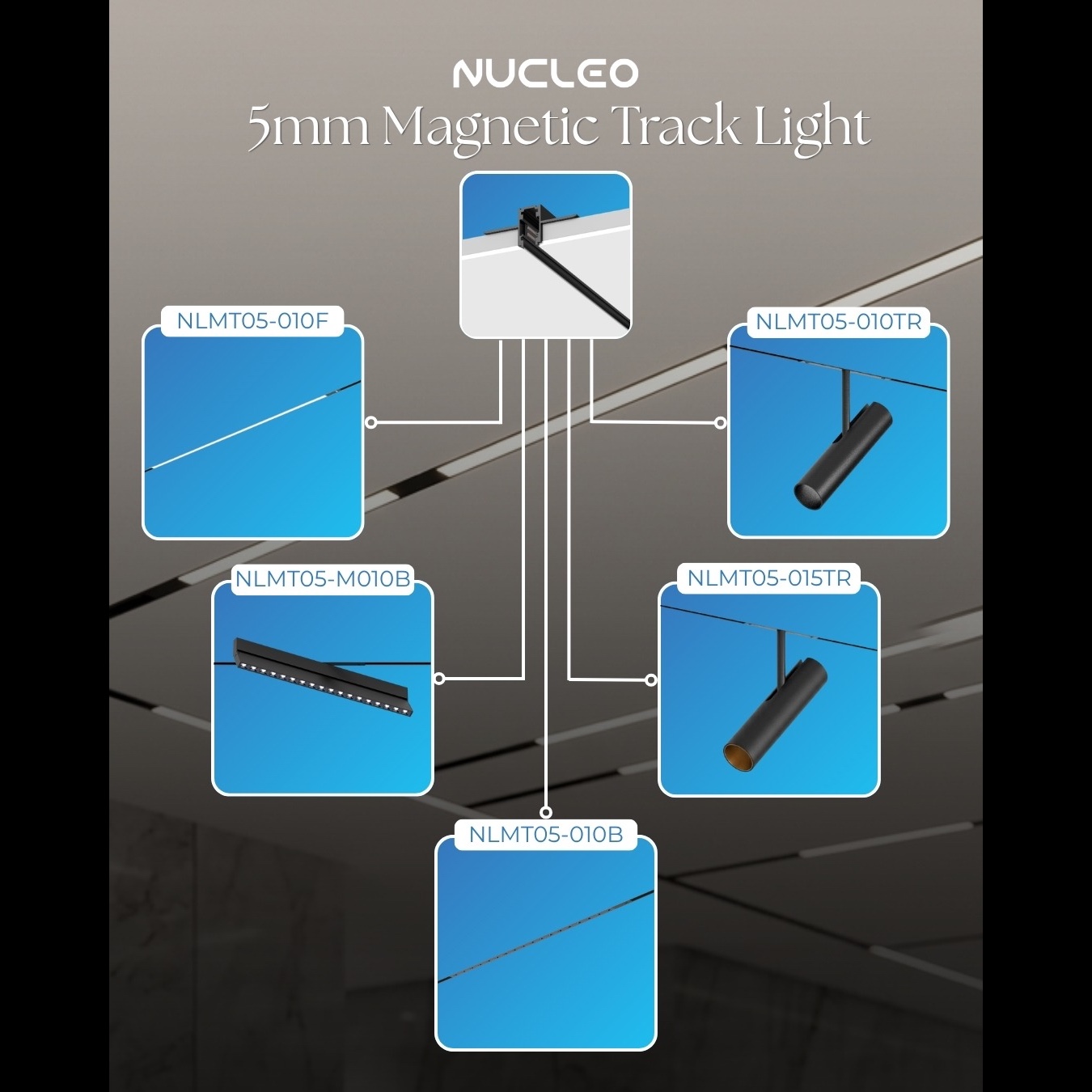

Compatible Magnetic Fixture Range
All fixtures in the 5mm recessed magnetic track series carry DALI or Tuya BLE Mesh drivers — individually addressable from the moment they clip onto the track.
Mini Spotlight
Compact accent spotlight. 15°/24° beam options. Ideal for jewellery, retail display, and intimate accent lighting from recessed track.
Round Downlight
Flush recessed-look downlight module that clips onto the recessed track. UGR <19 diffuser for office and hospitality ambient use.
Rotatable Spotlight
360° rotation + 30° tilt on the magnetic head. Accent any target in the room without moving the track position. COB module.
Linear Bar
Slim linear LED bar that clips magnetically — creates a short line-of-light accent on the ceiling surface. Available in 200mm and 300mm lengths.
Grille Spotlight
Anti-glare grille diffuser spotlight for office and commercial environments. UGR <19. Square form factor for architectural grid ceilings.
Long-Throw Spot
High-output 15W COB for high-ceiling installations (3.5–5m). 15° narrow spot for precise accent from greater height. CRI >95 Ra.
Why Specify 5mm Recessed Magnetic Track?
5mm Wide — Virtually Invisible
At just 5mm wide, the recessed track slot is a hairline in the ceiling. In white finish it vanishes entirely into plasterboard. The fixtures appear to float, attached to nothing visible from below.
Every Fixture Its Own Address
DALI or Tuya BLE Mesh — each magnetic fixture is individually dimmed, scene-programmed, and automated. Not possible with any standard track circuit system.
Reposition in Seconds
Slide any fixture to any position on the track — no tools, no ceiling work, no electrician. The retail floor changes; the lighting adapts in minutes.
48V Safe Low Voltage
48V DC throughout — no shock risk at the fixture contact point. Safe for end-user fixture repositioning without electrical isolation of the circuit.
One Track, All Fixture Types
Spotlights, downlights, linear bars, and grille lights all click onto the same 5mm track — mix fixture types on the same run for layered lighting design.
Future-Proof Infrastructure
Install the track once. Add, remove, or replace fixtures any time — without ceiling access or rewiring. The lighting evolves with the space indefinitely.
Technical Features
🏢 DALI DT6 + DT8
DALI Type 6 (dimming) and Type 8 (CCT tuning) fixture options. DALI line supports 64 individually addressed fixtures. Compatible with all DALI-2 compliant controllers and BMS.
📱 Tuya BLE Mesh Gen 4
Latest-generation Tuya BLE Mesh protocol — faster response, longer mesh range, and more simultaneous mesh nodes than previous generations. OTA updatable.
🌡️ CCT Tunable Option
DALI DT8 and Tuya CCT fixtures support 2700K–6500K colour temperature tuning per fixture individually — human-centric lighting capability across the track system.
📐 L / T / X Connectors
Mechanical and electrical corner connectors (L-join, T-junction, X-cross) allow complex ceiling track layouts — multi-directional grids, room perimeters, and custom patterns.
🎨 Finish Options
Track available in white, black, and silver anodised. Match ceiling colour for maximum invisibility, or contrast for a deliberate design statement.
🔒 Anti-Drop Safety
Magnetic fixtures include a secondary mechanical safety clip that prevents accidental drop if the magnetic contact is disturbed — mandatory for commercial and public space installations.
Technical Specifications
| Specification | Value |
|---|---|
| System | 5mm Ultra Slim Recessed Magnetic LED Track |
| Track Width | 5mm (ultra slim — nearly invisible when recessed) |
| Ceiling Groove Width | 6–7mm |
| Ceiling Groove Depth | 25–30mm (to house track body and power cables) |
| Track Voltage | 48V DC (low voltage) |
| Individual Control — Option A | DALI (IEC 62386) DT6 / DT8 — 64 fixtures per DALI line |
| Individual Control — Option B | Tuya BLE Mesh — unlimited fixtures per mesh network |
| Fixture Connection | Magnetic clip — tool-free, repositionable anywhere on track |
| Compatible Fixtures | Mini Spot / Round Downlight / Rotatable Spot / Linear Bar / Grille Spot / Long-Throw Spot |
| Fixture Wattage Range | 5W – 15W per fixture (model dependent) |
| CCT Options | 2700K / 3000K / 4000K / CCT Tuneable 2700K–6500K |
| CRI | >90 Ra standard / >95 Ra premium fixture option |
| Track Finish | White / Black / Silver Anodised |
| Corner Connectors | L-join / T-junction / X-cross / Flexible bend |
| IP Rating | IP20 (standard) / IP44 (wet area version) |
| Safety | Anti-drop secondary mechanical clip per fixture |
| Lifespan | 50,000 hours (LED modules) |
| Warranty | 2 Year (Nucleo Standard) |
Where 5mm Recessed Magnetic Track Is Specified
Jewellery Showrooms
Individual DALI control per showcase spotlight. Change display zones without ceiling work. High-CRI COB fixtures individually aimed and individually dimmed.
Hotel Suites
Tuya BLE Mesh individual control — guests adjust each accent light independently from a bedside tablet or voice command. Scenes pre-programmed for arrival, relaxation, and sleep.
Flagship Retail
DALI individual address per fixture — highlight specific products at 100%, fill aisles at 30%, and switch off unused zones. Lighting layout changes as fast as the merchandise.
Corporate Offices
DALI BMS integration — occupancy-linked per-fixture dimming. Only the workstations in use are fully lit. Energy compliance data logged per-fixture for BEE audits.
Premium Restaurants
Individual Tuya or DALI per table accent — lunch setting (bright, 4000K), dinner setting (dim, 2700K) programmed as scenes that transition at set times automatically.
Luxury Residences
Tuya BLE Mesh per fixture — every spotlight in the living room controlled individually from the app. Move a fixture magnetically when the furniture changes. No electrician needed.
Galleries & Museums
DALI individual control per artwork spotlight. Change the illuminance level for each specific artwork independently — curated lighting that matches each piece's curatorial intent.
Spa & Wellness
Tuya BLE Mesh CCT + dim per fixture — dim warm fixtures over treatment tables while maintaining cooler, brighter light over the reception desk on the same track run.
Installation Guide
🔧 Track Installation
- Mark the track run on the ceiling with a laser level. Plan the track layout including all corners, T-junctions, and end positions. Confirm the ceiling void depth is minimum 60mm above the ceiling face for the 48V DC driver and power feed cables.
- Cut the 6–7mm-wide ceiling groove (matching the 5mm track body) to the required depth (25–30mm) using a plunge saw with guide rail. For plasterboard ceilings, use a multi-tool with a depth guide. For concrete, use a wall chaser. Ensure the groove is straight and consistent depth throughout.
- Route the 48V DC power cable from the driver to the track start point through the ceiling void. Feed the cable through the track's cable entry end before pushing the track body into the groove.
- Press the track body into the groove. The track should sit with its face 5mm below the ceiling surface. Secure using the supplied fixing clips every 400mm — clips engage inside the groove and clamp the track from behind. No visible fixings on the track face.
- Install corner and T-junction connectors where required. Connector bodies sit in purpose-cut wider sections at junction points. Ensure all mechanical and electrical connections are fully engaged before closing the ceiling around them.
- Connect the 48V DC driver output to the track feed connector. For DALI systems, additionally run the DALI 2-core signal cable from the DALI controller to each driver. Power on and verify the track energises — test with a known-good magnetic fixture before proceeding to commission all fixtures.
🎛️ DALI & Tuya BLE Commissioning
- DALI Commissioning: With fixtures clipped onto the powered track, open your DALI commissioning software. Run a "Search for new devices" scan — all DALI fixtures on the bus will be discovered with random short addresses. Assign specific short addresses (0–63) to each fixture according to your lighting layout plan.
- Test each address individually by sending a direct arc level command. Verify the correct fixture responds. If fixtures respond incorrectly, check the DALI bus wiring topology — DALI must be a bus (not star) connection between controller, driver, and all fixtures.
- Programme DALI groups: Group 1 (accent fixtures), Group 2 (ambient fill), Group 3 (display zone A), etc. Assign each fixture to its group. Test group commands — all fixtures in each group should respond simultaneously.
- Programme scenes using scene numbers 0–15: Scene 0 = Presentation mode (all dim), Scene 1 = Display mode (accents full), Scene 2 = Evening (warm dim), etc. Store scenes and test from the controller.
- Tuya BLE Mesh Commissioning: Download Tuya Smart or Smart Life app. Enable Bluetooth. Open the app and tap "Add Device" — each nearby Tuya BLE Mesh fixture will be detected individually. Add each fixture, name it (e.g., "Living Room Spotlight 1"), and assign to a room.
- Create scenes in the Tuya app: "Movie Night" (all dim to 10%, 2700K), "Working" (accent full, 4000K), "Welcome" (all 60%, 3000K). Enable Alexa/Google skill and test voice commands. Set automations: "When time is 22:00 → activate Movie Night scene". Commission complete.
⚡ The Track That Thinks Like a Lighting Designer
A lighting designer doesn't think in circuits. They think in individual lights — this one bright, that one dim, that group warmer, this zone off. Until individual fixture control on magnetic track became practical, the gap between what a lighting designer imagined and what an installed track system could deliver was often enormous. Every fixture on a circuit had to behave the same.
The 5mm recessed magnetic track with DALI or Tuya BLE Mesh closes that gap entirely. Every fixture is individually addressable. Every scene is individually composed. Every zone is independently managed. The track itself is almost invisible — 5mm of face in a flush ceiling groove — so the entire visual language of the space is defined by where the light is and how bright it is, not by the infrastructure carrying it.
Whether you choose DALI for a commercial project where the BMS needs to know the status of every fixture, or Tuya BLE Mesh for a villa where the homeowner wants to adjust every accent from their phone — the 5mm recessed magnetic track delivers the same result: a ceiling that looks clean, and lighting that behaves exactly as intended.
